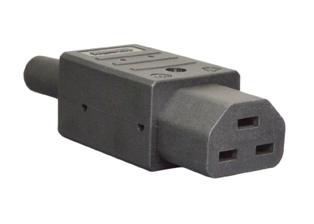

Part Number57095
Description: IEC 60320 C-21 "HIGH TEMP" 155°C CONNECTOR , 20 AMPERE-250 VOLT 60HZ AND 16 AMPERE-250 VOLT 50HZ, 2 POLE-3 WIRE GROUNDING, TERMINALS ACCEPT 16, 14, 12, 10 AWG (1.0, 1.5, 2.5mm2) CONDUCTORS, ACCEPTS 6.5-16 mm (0.256-0.629") DIA. CORDAGE, BLACK.
Notes:
* Material = Thermoplastic, UL 94V-0.
* Operating temp. = -25°C to +155°C.
* Max terminal torque = 0.8Nm, Cable clamp and cover = 0.4Nm.
* Mating C-22 "high temp" power inlets #57083, #57084 listed below under related products.
* #57095 connector connects with C-20 type plugs, power cords listed below.
Approvals: C(UL)US, ENEC 10, VDE, CCC
Certifications: REACH, RoHS, RoHS2 (2011/65/EU), RoHS3 (2015/863, 2017/2012), CHINA RoHS, CE
Standards: IEC 60320 C-21, IEC 60320-1, UL 60320-1, CSA C22.2 No. 60320-1
Data Sheet:
View Dimensional Data Sheet: 57095.pdf
Price & Avail: Contact Sales Office for Price and Delivery: Quantity Discount Incentives Available - Majority of all Products are in Stock
IEC 60320 C-21 <font color="yellow"> "HIGH TEMP" 155°C CONNECTOR </font>, 20 AMPERE-250 VOLT 60HZ AND 16 AMPERE-250 VOLT 50HZ, 2 POLE-3 WIRE GROUNDING, TERMINALS ACCEPT 16, 14, 12, 10 AWG (1.0, 1.5, 2.5mm2) CONDUCTORS, ACCEPTS 6.5-16 mm (0.256-0.629") DIA. CORDAGE, BLACK. <br><font color="yellow">Notes: </font> <br><font color="yellow">*</font> Material = Thermoplastic, UL 94V-0. <br><font color="yellow">*</font> Operating temp. = -25°C to +155°C. <br><font color="yellow">*</font> Max terminal torque = 0.8Nm, Cable clamp and cover = 0.4Nm. <br><font color="yellow">*</font> Mating C-22 "high temp" power inlets #57083, #57084 listed below under related products. <br><font color="yellow">*</font> #57095 connector connects with C-20 type plugs, power cords listed below.
Scroll down to view
Related Products
Related Products:

57095-RA

IEC 60320 C-21 "HIGH TEMP" 155°C RIGHT ANGLE CONNECTOR , 20 AMPERE-250, 2 POLE-3 WIRE GROUNDING, BLACK.
Notes:
* #57095-RA connector connects with C-20 type plugs, power cords listed below.

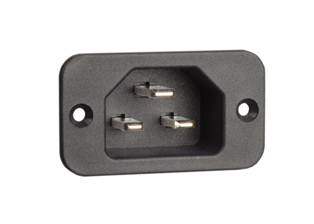

57083

IEC 60320 C-22 "HIGH TEMP" 155°C PANEL MOUNT INLET , 20A-250V, 6.3 x 0.8 mm (0.250" x 0.032") QUICK CONNECT Q.D. TERMINALS, BLACK.

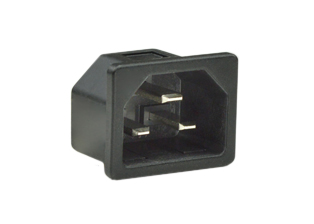

57084

IEC 60320 C-22 "HIGH TEMP" 155°C PANEL MOUNT INLET , 20 A-250V, 6.3 x 0.8 mm (0.250" x 0.032") QUICK CONNECT Q.D. TERMINALS, SNAP-IN DESIGN, BLACK.

57110-V

IEC 60320 C-20 PLUG, 20A-250V, ACCEPTS 12 AWG (4.0 mm2) CONDUCTORS, 12 mm (0.472") DIA. CORD, BLACK.

57110

IEC 60320 C-20 PLUG, 20A-250V (UL,CSA), 16A-250V (VDE, CCC, ENEC 10). ACCEPTS 8-10 mm (0.315-0.394") DIA. CORD. BLACK.

57110-RA

IEC 60320 C-20 RIGHT ANGLE PLUG, 20A-250V C(UL)US, 16A-250V (ENEC 10, CCC), ACCEPTS 0.394" DIA. CORD, BLACK.

57110-K

IEC 60320 C-20 STRAIGHT PLUG, 16 AMP-250 VOLT, 2 POLE-3 WIRE GROUNDING. TERMINALS ACCEPT 16AWG & 14AWG CONDUCTORS, MAX ∅14AWG (2.5mm²), INTERNAL STRAIN RELIEF ACCEPTS 10mm (0.394") DIAMETER CORD, EXTERNAL STRAIN RELIEF ACCEPTS 9mm (0.354") DIAMETER CORD, POLYAMIDE 6 (NYLON), TEMP. RATING = -30°C TO +80°C, BLACK.

57110-KRA

IEC 60320 C-20 RIGHT ANGLE PLUG, 16 AMP-250 VOLT, 2 POLE-3 WIRE GROUNDING, TERMINALS ACCEPT 16AWG & 14AWG CONDUCTORS, MAX ∅14AWG (2.5mm²), INTERNAL STRAIN RELIEF ACCEPTS 10mm (0.394") DIA. CORD, EXTERNAL STRAIN RELIEF ACCEPTS 9mm (0.354") DIA. CORD, POLYAMIDE 6 (NYLON), TEMP. RATING = -30°C TO +80°C, BLACK.

57110-KLA

IEC 60320 C-20 LEFT ANGLE PLUG, 16 AMP-250 VOLT, 2 POLE-3 WIRE GROUNDING, TERMINALS ACCEPT 16AWG & 14AWG CONDUCTORS, MAX ∅14AWG (2.5mm²), INTERNAL STRAIN RELIEF ACCEPTS 10mm (0.394") DIA. CORD, EXTERNAL STRAIN RELIEF ACCEPTS 9mm (0.354") DIA. CORD, POLYAMIDE 6 (NYLON), TEMP. RATING = -30°C TO +80°C, BLACK.

Bulk-Electrical-Wire-Cable

Bulk International Electrical Wire Cable
* HAR Marked European Approved H05VV-F, H07RN-F, H05RN-F, H05RR-F Wire.
* Dual European and UL Approved HAR SJTO SJTOW H05VV-F Wire.
* Dual European and UL Approved HAR SOOW H07RN-F Wire.

90730

"UNIVERSAL" POWER SUPPLY CORD, IEC 60320 C-20 PLUG, 15A-250V (UL/C-UL), 16A-250V (VDE), ROJ = 2", STRIP = 1/4", 2.5 METERS [8FT-2IN] [98"] LONG, BLACK.
Length: 2.5 METERS [8FT-2IN]

90735

"UNIVERSAL" POWER SUPPLY CORD, IEC 60320 (320) C-19 CONNECTOR, 16A-250V, 2 POLE-3 WIRE GROUNDING, H05VV-F3Gx1.5mm, 2.0 METERS [6FT-7IN] [79"] LONG, BLACK.
Length: 2.0 METERS [6FT-7IN]

90740

"UNIVERSAL" POWER SUPPLY CORD, IEC 60320 C-20 PLUG, 15A-250V (UL/C-UL), 16A-250V (VDE), ROJ = 2", STRIP = 1/4", 1.0 METERS [3FT-3IN] [39"] LONG, BLACK.
Length: 1.0 METERS [3FT-3IN]

90745

"UNIVERSAL" POWER SUPPLY CORD, IEC 60320 C-20 PLUG, 15A-250V (UL/C-UL), 16A-250V (VDE), ROJ = 2", STRIP = 1/4", 3.05 METERS [10 FEET] [120"] LONG, BLACK.
Length: 3.05 METERS [10 FEET]

90621

IEC 60320 C-20 PLUG, 20A-250V POWER SUPPLY CORD, 12/3 AWG, SJTO, 2.5 METERS [8FT-2IN] [98"] LONG. STRIPPED ENDS. BLACK.
Length: 2.5 METERS [8FT-2IN]

90665

IEC 60320 C-20 PLUG, 20A-250V POWER SUPPLY CORD, 12/3 AWG, SJTO, 105°C, 2.0 METERS [6FT-7IN] [79"] LONG, STRIPPED ENDS. BLACK.
Length: 2.0 METERS [6FT-7IN]

90670

IEC 60320 C-20 PLUG, 20A-250V POWER SUPPLY CORD, 12/3 AWG, SJTO, 105°C, 1.0 METERS [3FT-3IN] [39"] LONG. STRIPPED ENDS. BLACK.
Length: 1.0 METERS [3FT-3IN]

90675

IEC 60320 C-20 PLUG, 20A-250V POWER SUPPLY CORD, 12/3 AWG, SJTO, 105°C, 5.0 METERS [16FT-5IN] [197"] LONG, STRIPPED ENDS. BLACK.
Length: 5.0 METERS [16FT-5IN]
