Part Number98716X8FT
Description: POWER SUPPLY CORD SET, IEC-60320 C-15 CONNECTOR, 15A 250V, 14/3 AWG, 105 C, BLACK, SJT CORDAGE, 8 FEET LONG, 2P 3W GROUNDING, UL, C-UL (CSA) LISTED.
Approvals: UL, C-UL (CSA)
Certifications: REACH, RoHS, CE
Standards: IEC 60320, C-14, C-15, SJT
Data Sheet:
Dimensional Data Sheet
Associated Products # 1
View / Print

product data
Associated Products # 2
View / Print

product data
Related Products:

98716X8FT

POWER SUPPLY CORD SET, IEC-60320 C-15 CONNECTOR, 15A 250V, 14/3 AWG, 105 C, BLACK, SJT CORDAGE, 8 FEET LONG, 2P 3W GROUNDING, UL, C-UL (CSA) LISTED.

98716X10FT

POWER SUPPLY CORD SET, IEC-60320 C-15 CONNECTOR, 15A 250V, 14/3 AWG, 105 C, BLACK, SJT CORDAGE, 10 FEET LONG, 2P 3W GROUNDING, UL, C-UL (CSA) LISTED.

98716X15FT

POWER SUPPLY CORD SET, IEC-60320 C-15 CONNECTOR, 15A 250V, 14/3 AWG, 105 C, BLACK, SJT CORDAGE, 15 FEET LONG, 2P 3W GROUNDING, UL, C-UL (CSA) LISTED.

98715X15IN

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-15 CONNECTOR, 14/3 AWG SJT 105C, 15 INCHES LONG. BLACK.

98715X27IN

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-15 CONNECTOR, 14/3 AWG SJT 105C, 27 INCHES LONG. BLACK, UL, C-UL (CSA) LISTED.

98715X2FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-15 CONNECTOR, 14/3 AWG SJT 105C, 2 FEET LONG. BLACK, UL, C-UL (CSA) LISTED.

98715X3FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-15 CONNECTOR, 14/3 AWG SJT 105C, 3 FEET LONG. BLACK, UL, C-UL (CSA) LISTED.

98715X4FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-15 CONNECTOR, 14/3 AWG SJT 105C, 4 FEET LONG. BLACK, UL, C-UL (CSA) LISTED.

98715X6FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-15 CONNECTOR, 14/3 AWG SJT 105C, 6 FEET LONG. BLACK, UL, C-UL (CSA) LISTED.

98715X8FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-15 CONNECTOR, 14/3 AWG SJT 105C, 8 FEET LONG. BLACK, UL, C-UL (CSA) LISTED.

98715X10FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-15 CONNECTOR, 14/3 AWG SJT 105C, 10 FEET LONG. BLACK, UL, C-UL (CSA) LISTED.

98715X15FT

PLUG ADAPTER, DETACHABLE POWER CORD, 15A-250V, IEC 60320 C-14 PLUG, IEC 60320 C-15 CONNECTOR, 14/3 AWG SJT 105C, 15 FEET LONG. BLACK, UL, C-UL (CSA) LISTED.

57050-NS

IEC 60320(C-15/C-13) IN-LINE CONNECTOR, 15A-250V (UL/CSA), 10A-250V VDE). ACCEPTS 14 AWG (2.5 mm2) CONDUCTORS, 7 mm DIA. (0.276 ) CORDAGE. BLACK.

57050-NSL

IEC 60320 (C-15/C-13) IN-LINE CONNECTOR, 15A-250V (UL/CSA), 10A-250V (VDE). ACCEPTS 14 AWG (2.5 mm2) CONDUCTORS, 8.5 mm DIA. (0.315 ) CORDAGE. BLACK.

57050-M

IEC 60320 (C-15/C-13) IN-LINE CONNECTOR, 10A-250V / 15A-125V (UL/CSA). ACCEPTS 12 AWG (4.0 mm2) CONDUCTORS, (0.655 ) DIA. CORDAGE. BLACK.

57050-A

IEC 60320 (C-15/C-13) IN-LINE CONNECTOR, 10 AMPERE-250 VOLT (VDE). TERMINALS ACCEPT 12 AWG (4.0 mm2) CONDUCTORS. ACCEPTS 9 mm DIA. (0.354 ) CORDAGE. BLACK.

57060-NS

IEC 60320 (C-15/C-13) IN-LINE RIGHT ANGLE CONNECTOR, 15A-250V (UL/CSA), 10A-250V (VDE). ACCEPTS 14 AWG (2.5 mm2) CONDUCTORS, 7 mm DIA. (0.276 ) CORDAGE. BLACK.

57060-NSL

IEC 60320 (C-15/C-13) IN-LINE RIGHT ANGLE CONNECTOR, 15A-250V (UL/CSA), 10A-250V (VDE). ACCEPTS 14 AWG (2.5 mm2) CONDUCTORS, 8.5 mm DIA. (0.315 ) CORDAGE. BLACK.

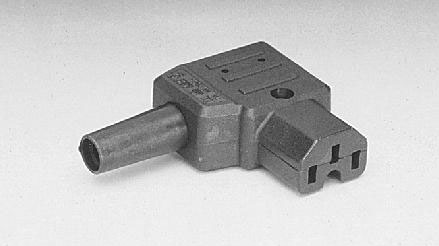

57060-A

IEC 60320 (C-15/C-13) IN-LINE RIGHT ANGLE CONNECTOR 10A-250V (VDE). BLACK.

57075

IEC 60320 (C-15/C-13) IN-LINE LEFT ANGLE CONNECTOR, 15A-250V (UL/CSA), 10A-250V (VDE). ACCEPTS 16 AWG (1.5 mm2) CONDUCTORS, 7 mm DIA. (0.276 ) CORDAGE. BLACK.

57085

IEC 60320 (C-15/C-13) IN-LINE DOWN ANGLE CONNECTOR, 10A-250V (VDE). BLACK,

57021

IEC 60320, C-16 PANEL MOUNT INLET 15A-250V. BLACK.

57025

IEC 60320 (320) C-16 POWER INLET,SCREW MOUNT TO PANELS,BLACK,2 P 3W. 4.8mm TABS.

57023

IEC 60320 (320) C-16 POWER INLET,SCREW MOUNT TO PANELS,BLACK,2 P 3W. SOLDER TABS.

57321

IEC 60320 (320) C-16 POWER INLET, 6.3 QC TABS SNAP-IN MOUNT TO 1.5 THICK TO PANELS,BLACK,2 P 3W.

57325

IEC 60320 (320) C-16 POWER INLET, 4.8mm QC TABS SNAP-IN MOUNT TO 1.5 THICK TO PANELS,BLACK,2 P 3W.

57323

IEC 60320 (320) C-16 POWER INLET, SOLDER TABS,SNAP-IN MOUNT TO 1.5 THICK TO PANELS,BLACK,2 P 3W.

57030

IEC 60320 C-14 PLUG, 10A-250V, ACCEPTS 18 AWG (1.0 mm2) CONDUCTORS, 7mm DIA. (0.276) CORDAGE. BLACK.

57030-NSL

IEC 60320 C-14 PLUG, 15A-250V (UL/CSA), 10A-250V (VDE,CCC), ACCEPTS 14 AWG (2.5 mm2) CONDUCTORS, 8.5mm (0.315 ) DIA. CORDAGE. BLACK.

57030-A

IEC 60320 C-14 PLUG, 10A-250V, TERMINALS ACCEPT 18AWG - 14AWG CONDUCTORS, (0.394) DIA. CORDAGE. BLACK.

57040

IEC 60320 C-14 RIGHT ANGLE PLUG, 10A-250V (UL,CSA, VDE,CCC). ACCEPTS 14 AWG (2.5 mm2) CONDUCTORS, 7mm DIA. (0.276 ) CORDAGE. BLACK.

57040-NSL

IEC 60320 C-14 RIGHT ANGLE PLUG. 15A-250V (UL/CSA), 10A-250V (VDE,CCC). ACCEPTS 14 AWG (2.5 mm2) CONDUCTORS, 8.5mm DIA. (0.315 ) CORDAGE. BLACK.

57040-A

IEC 60320 C-14 RIGHT ANGLE PLUG, 10 AMP-250 VOLT, TERMINALS ACCEPT 18AWG - 14AWG CONDUCTORS, 10mm (0.394") DIA. CORDAGE. BLACK.

57040-AL

IEC 60320 C-14 LEFT ANGLE PLUG, 10A-250V, TERMINALS ACCEPT 18AWG-14AWG CONDUCTORS, 10mm (0.394) DIA. CORDAGE . BLACK.

57045

IEC 60320 C-14 LEFT ANGLE PLUG. 15A-250V (UL/CSA), 10A-250V (VDE). ACCEPTS 16 AWG (1.5 mm2) CONDUCTORS, 7 mm DIA. (0.276) CORDAGE. BLACK.

57035

IEC 60320, C-14 ANGLE PLUG, 10A-250V, ACCEPTS 18 AWG (1.0 mm2) CONDUCTORS, 8.5 mm MAX DIA. CORDAGE. BLACK.
