Part Number70190
Description: EUROPEAN "SCHUKO" 16 AMPERE-250 VOLT CEE 7/7 TYPE E, F, (EU1-16) WEATHERPROOF (IP44) POWER INLET, SNAP-SHUT CLOSURE LID, 2 POLE-3 WIRE GROUNDING (2P+E), SURFACE MOUNT. BLACK.
Notes:
* Accepts European #70161 (EU1-16R), French #71161 (FR1-16R) type connectors.
* European CEE 7/7 IP68 locking power inlets #70395, #71442, #71443, #71444 available. Prevents accidental disconnects.
* European extension cords, GFCI (RCD) extension cords, plugs, connectors, power cords, IP68 "locking" European power inlets/outlets are listed below in related products. Scroll down to view.
Approvals: VDE
Certifications: RoHS
Standards: CEE 7/7, DIN 49440/49441
Data Sheet:
View Dimensional Data Sheet: 70190.pdf
Price & Avail: Contact Sales Office for Price and Delivery: Quantity Discount Incentives Available - Majority of all Products are in Stock
EUROPEAN "SCHUKO" 16 AMPERE-250 VOLT CEE 7/7 TYPE E, F, (EU1-16) WEATHERPROOF (IP44) POWER INLET, SNAP-SHUT CLOSURE LID, 2 POLE-3 WIRE GROUNDING (2P+E), SURFACE MOUNT. BLACK.

<br><font color="yellow">Notes: </font>
<br><font color="yellow">*</font> Accepts European #70161 (EU1-16R), French #71161 (FR1-16R) type connectors.
<br><font color="yellow">*</font> European CEE 7/7 IP68 locking power inlets #70395, #71442, #71443, #71444 available. Prevents accidental disconnects.
<br><font color="yellow">*</font> European extension cords, GFCI (RCD) extension cords, plugs, connectors, power cords, IP68 "locking" European power inlets/outlets are listed below in related products. Scroll down to view.
Scroll down to view
Related Products
Related Products:

70190

EUROPEAN CEE 7/7 (EU1-16P) "SCHUKO" TYPE E, F, 16A-250V WEATHERPROOF (IP44) POWER INLET. BLACK.
Notes:
* Accepts European #70161 (EU1-16R), French #71161 (FR1-16R) type connectors.
* European CEE 7/7 IP68 locking power inlets #70395, #71442, #71443, #71444 available. Prevents accidental disconnects.

71442

EUROPEAN SCHUKO 16 AMPERE 220-250 VOLT, 50/60 Hz, IP68 RATED WATERTIGHT LOCKING PANEL MOUNT FLANGED INLET (*), CEE 7/4 TYPE F (EU1-16P). NYLON. GRAY / BLUE.
Notes:
* (*) Locks onto #71445, #70361 power connectors. Twist type locking collar locks and seals connection. Prevents accidental disconnects.
* Closure cover for #71442 inlet available, protects inlet from weather and impact damage, when required order cover #71440-A.

888-6136-NS

IEC 60309 (6h) PIN & SLEEVE STRAIGHT POWER INLET, 20A/16A-220/250V (2P+E), SPLASHPROOF (IP44), CEE 17, IEC 309. C(UL)US LISTED & EUROPEAN OVE (UNIVERSAL APPROVALS). 56mmX56mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-611306

IEC 60309 (6h) PIN & SLEEVE DOWN ANGLE POWER INLET, 20A/16A-220/250V (2P+E), SPLASHPROOF (IP44), CEE 17, IEC 309. UL, CSA & EUROPEAN OVE (UNIVERSAL APPROVALS). 55mmX30mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-71326-NS

IEC 60309 (6h) PIN & SLEEVE DOWN ANGLE POWER INLET, 20A/16A-220/250V (2P+E), WATERTIGHT (IP67), CEE 17, IEC 309. UL, CSA & EUROPEAN VDE (UNIVERSAL APPROVALS). 55mmX30mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

999-1154210

IEC 60309 (6h), 16A-250V, FLUSH MOUNT POWER INLET, SPLASHPROOF (IP44), 2 POLE-3 WIRE GROUNDING (2P+E). BEIGE. EUROPEAN APPROVALS.
Notes:
* Applications = European / International exported equipment, mobile units, RV, caravans, trailers, vans.
* Mating in-line connector #888-3126-NS.

888-31000-NS

IEC 60309 (4h) PIN & SLEEVE CONNECTOR, 20A-120V (2P+E), SPLASHPROOF (IP44). YELLOW. C(UL)US APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-6134-NS

IEC 60309 (4h) PIN & SLEEVE PANEL MOUNT FLANGED INLET, 20A-120V (2P+E), SPLASHPROOF (IP44). 56mmX56mm C TO C MOUNTING. YELLOW. C(UL)US APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-611316

IEC 60309 (4h) PIN & SLEEVE ANGLED FLANGED POWER INLET, 20A-120V (2P+E), SPLASHPROOF (IP44). 61mmX53mm C TO C MOUNTING. YELLOW. UL APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-3156-NS

IEC 60309 (4h) PIN & SLEEVE CONNECTOR, 20A-120V (2P+E), WATERTIGHT (IP67). YELLOW. C(UL)US APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-71324-NS

IEC 60309 (4h) PIN & SLEEVE PANEL MOUNT POWER INLET, 20A-120V (2P+E), WATERTIGHT (IP67). 61mmX53mm C TO C MOUNTING. YELLOW. UL APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-31012-NS

IEC 60309 (4h) PIN & SLEEVE CONNECTOR, 30A-120V (2P+E), SPLASHPROOF (IP44). YELLOW. C(UL)US APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-6234-NS

IEC 60309 (4h) PIN & SLEEVE PANEL MOUNT FLANGED INLET, 30A-120V (2P+E), SPLASHPROOF (IP44). 56mmX56mm C TO C MOUNTING. YELLOW. C(UL)US APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-631316

IEC 60309 (4h) PIN & SLEEVE ANGLED FLANGED POWER INLET, 30A-120V (2P+E), SPLASHPROOF (IP44). 78mmX45mm C TO C MOUNTING. YELLOW. UL LISTED, CSA APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-3168-NS

IEC 60309 (4h) PIN & SLEEVE CONNECTOR, 30A-120V (2P+E), WATERTIGHT (IP67). YELLOW. C(UL)US APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-72324-NS

IEC 60309 (4h) PIN & SLEEVE PANEL MOUNT POWER INLET, 30A-120V (2P+E), WATERTIGHT (IP67). 78mmX45mm C TO C MOUNTING. YELLOW. UL LISTED, CSA APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

999-31000-NS

IEC 60309 (4h) PIN & SLEEVE CONNECTOR, 16A 110-130V (2P+E), SPLASHPROOF (IP44). YELLOW. OVE APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

999-6134-NS

IEC 60309 (4h) PIN & SLEEVE PANEL MOUNT FLANGED INLET, 16A 110-130V (2P+E), SPLASHPROOF (IP44). 56mmX56mm C TO C MOUNTING. YELLOW. EUROPEAN OVE APPROVAL.

PIN AND SLEEVE IEC 60309 BROCHURE.

999-2705-NS

IEC 60309 (4h) PIN & SLEEVE ANGLED FLANGED POWER INLET, 16A 110-130V (2P+E), SPLASHPROOF (IP44). 61mmX53mm C TO C MOUNTING. YELLOW. OVE APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

999-3156-NS

IEC 60309 (4h) PIN & SLEEVE CONNECTOR, 16A 110-130V (2P+E), WATERTIGHT (IP67). YELLOW. OVE APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

999-71324-NS

IEC 60309 (4h) PIN & SLEEVE PANEL MOUNT POWER INLET, 16A 110-130V (2P+E), WATERTIGHT (IP67). 61mmX53mm C TO C MOUNTING. OVE APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

999-31012-NS

IEC 60309 (4h) PIN & SLEEVE CONNECTOR, 32A 110-130V (2P+E), SPLASHPROOF (IP44). YELLOW. OVE APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

999-6234-NS

IEC 60309 (4h) PIN & SLEEVE PANEL MOUNT FLANGED INLET, 32A 110-130V (2P+E), SPLASHPROOF (IP44). 56mmX56mm C TO C MOUNTING. YELLOW. OVE APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

999-2758-NS

IEC 60309 (4h) PIN & SLEEVE ANGLED FLANGED POWER INLET, 32A 110-130V (2P+E), SPLASHPROOF (IP44). 78mmX45mm C TO C MOUNTING. YELLOW. OVE APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

999-3168-NS

IEC 60309 (4h) PIN & SLEEVE CONNECTOR, 32A 110-130V (2P+E), WATERTIGHT (IP67). YELLOW. OVE APPROVED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-3126-NS

IEC 60309 (6h) PIN & SLEEVE IN-LINE CONNECTOR, 20A/16A-220/250V (2P+E), SPLASHPROOF (IP44), CEE 17, IEC 309. C(UL)US LISTED & EUROPEAN OVE (UNIVERSAL APPROVALS). PIN AND SLEEVE IEC 60309 BROCHURE.

888-6136-NS

IEC 60309 (6h) PIN & SLEEVE STRAIGHT POWER INLET, 20A/16A-220/250V (2P+E), SPLASHPROOF (IP44), CEE 17, IEC 309. C(UL)US LISTED & EUROPEAN OVE (UNIVERSAL APPROVALS). 56mmX56mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-611306

IEC 60309 (6h) PIN & SLEEVE DOWN ANGLE POWER INLET, 20A/16A-220/250V (2P+E), SPLASHPROOF (IP44), CEE 17, IEC 309. UL, CSA & EUROPEAN OVE (UNIVERSAL APPROVALS). 55mmX30mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

999-1154210

IEC 60309 (6h), 16A-250V, FLUSH MOUNT POWER INLET, SPLASHPROOF (IP44), 2 POLE-3 WIRE GROUNDING (2P+E). BEIGE. EUROPEAN APPROVALS.
Notes:
* Applications = European / International exported equipment, mobile units, RV, caravans, trailers, vans.
* Mating in-line connector #888-3126-NS.

888-2126-ADP

IEC 60309 (6h) CEE 17 PLUG ADAPTER WITH EUROPEAN "SCHUKO" CEE 7/3 SOCKET (IP44 RATED), SPRING LOADED FLIP LID CLOSURE COVER, 16 AMPERE-250 VOLT, 2 POLE-3 WIRE GROUNDING (2P+E). BLUE COLOR.
Notes:
* Connects European "SCHUKO" CEE 7/4, CEE 7/7 type E, F, plugs with IEC 60309 (6h) (16A-250V) (20A-250V)sockets.

888-3157-NS

IEC 60309 (6h) PIN & SLEEVE CONNECTOR, 20A/16A-220/250V (2P+E), WATERTIGHT (IP67), CEE 17, IEC 309. C(UL)US LISTED & EUROPEAN OVE (UNIVERSAL APPROVALS). PIN AND SLEEVE IEC 60309 BROCHURE.

888-71326-NS

IEC 60309 (6h) PIN & SLEEVE DOWN ANGLE POWER INLET, 20A/16A-220/250V (2P+E), WATERTIGHT (IP67), CEE 17, IEC 309. UL, CSA & EUROPEAN VDE (UNIVERSAL APPROVALS). 55mmX30mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-3138-NS

IEC 60309 (6h) 30A/32A-220/250V (2P+E) SPLASHPROOF (IP44) IN-LINE CONNECTOR, "UNIVERSAL APPROVALS". BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-6236-NS

IEC 60309 (6h) 30A-250V (C(UL)US), 32A-220V (OVE), SPLASHPROOF (IP44) PANEL MOUNT POWER INLET, "UNIVERSAL APPROVALS", 56mmX56mm C TO C MOUNTING,BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-631306

IEC 60309 (6h) 30A/32A-220/250V (2P+E) SPLASHPROOF (IP44) DOWN ANGLE PANEL MOUNT INLET, "UNIVERSAL APPROVALS", 78mmX45mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-3169-NS

IEC 60309 (6h) 30A/32A-220/250V (2P+E) WATERTIGHT (IP67) IN-LINE CONNECTOR, "UNIVERSAL APPROVALS". BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-72326-NS

IEC 60309 (6h) 30A/32A-220/250V (2P+E), WATERTIGHT (IP67) DOWN ANGLE PANEL MOUNT INLET, "UNIVERSAL APPROVALS", 78mmX45mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-303-NS

IEC 60309 (6h) PIN AND SLEEVE 3 PHASE CONNECTOR, 20A-200/415V (C(UL)US), 16A-220/380V, 240/415V (OVE), (3P+N+E) SPLASHPROOF (IP44) "UNIVERSAL". RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-7156-NS

IEC 60309 (6h) PIN & SLEEVE 3 PHASE PANEL MOUNT INLET, 20A-200/415V (C(UL)US), 16A-220/380V, 240/415V (OVE), (3P+N+E) SPLASHPROOF (IP44) "UNIVERSAL", 56mmX56mm C TO C MOUNTING. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-2757-NS

IEC 60309 (6h) PIN & SLEEVE 3 PHASE DOWN ANGLE PANEL MOUNT INLET, 20A-200/415V (C(UL)US), 16A-220/380V, 240/415V (OVE), (3P+N+E) SPLASHPROOF (IP44) "UNIVERSAL", 40mmX68mm C TO C MOUNTING. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

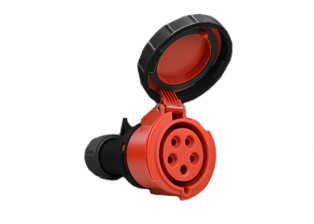

888-3167-NS

IEC 60309 (6h) PIN & SLEEVE 3 PHASE CONNECTOR, 20A-200/415V (C(UL)US), 16A-220/380V, 240/415V (OVE), (3P+N+E) WATERTIGHT (IP67) "UNIVERSAL". RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-2793-NS

IEC 60309 (6h) PIN & SLEEVE 3 PHASE DOWN ANGLE PANEL MOUNT INLET, 20A-200/415V (C(UL)US), 16A-220/380V, 240/415V (OVE), (3P+N+E) WATERTIGHT (IP67) "UNIVERSAL". RED. /415V (OVE), 40mmX68mm C TO C MOUNTING. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-331-NS

IEC 60309 (6h) 3 PHASE CONNECTOR, 30A-200/415V (C(UL)US), 32A-220/380V, 240/415V (OVE), (3P+N+E) SPLASHPROOF (IP44) "UNIVERSAL" IN-LINE CONNECTOR. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-6256-NS

IEC 60309 (6h) 3 PHASE INLET, 30A-200/415V (C(UL)US), 32A-220/380V, 240/415V (OVE), (3P+N+E) SPLASHPROOF (IP44) "UNIVERSAL" PANEL MOUNT INLET, 56mmX56mm C TO C MOUNTING. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-2769-NS

IEC 60309 (6h) 3 PHASE INLET, 30A-200/415V (C(UL)US), 32A-220/380V, 240/415V (OVE), (3P+N+E) SPLASHPROOF (IP44) "UNIVERSAL" DOWN ANGLE PANEL MOUNT INLET, 77mmX85mm C TO C MOUNTING, RED. PIN AND SLEEVE IEC 60309 BROCHURE.

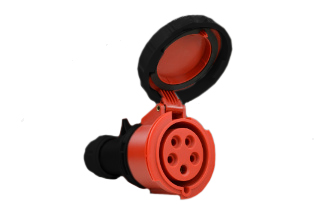

888-3179-NS

IEC 60309 (6h) 3 PHASE CONNECTOR, 30A-200/415V (C(UL)US), 32A-220/380V, 240/415V (OVE), (3P+N+E) WATERTIGHT (IP67) "UNIVERSAL" IN-LINE CONNECTOR. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-27005-NS

IEC 60309 (6h) 3 PHASE INLET, 30A-200/415V (UL/CSA), 32A-220/380V, 240/415V (VDE), (3P+N+E) WATERTIGHT (IP67) "UNIVERSAL" DOWN ANGLE PANEL MOUNT INLET, 77mmX85mm C TO C MOUNTING. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-360306

IEC 60309 (6h) 60A/63A-250V (2P+E) SPLASHPROOF (IP44) PLUG, "UNIVERSAL APPROVALS". BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-361306

IEC 60309 (6h) 60A/63A-250V (2P+E) SPLASHPROOF (IP44) CONNECTOR, DUAL STRAIN RELIEFS, "UNIVERSAL APPROVALS". BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-661306

IEC 60309 (6h) 60A/63A-250V (2P+E) SPLASHPROOF (IP44) DOWN ANGLE POWER INLET, "UNIVERSAL APPROVALS", 90mmX90mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-369306

IEC 60309 (6h) 60A/63A-250V (2P+E) WATERTIGHT (IP67) IN-LINE CONNECTOR, DUAL STRAIN RELIEFS, "UNIVERSAL APPROVALS". BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-669306

IEC 60309 (6h) 60A/63A-250V (2P+E) WATERTIGHT (IP67) DOWN ANGLE POWER INLET, "UNIVERSAL APPROVALS", 90mmX90mm C TO C MOUNTING. BLUE. PIN AND SLEEVE IEC 60309 BROCHURE.

888-360

IEC 60309 (6h) 3 PHASE CONNECTOR, 60A-380/415V (400 VOLT) (UL/CSA), 63A-220/380V-240/415V (400 V0LT) (EUROPEAN) (3P+N+E), SPLASHPROOF (IP44) CONNECTOR, "UNIVERSAL APPROVALS". RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-3124

IEC 60309 (6h) 3 PHASE CONNECTOR, 60A-380/415V (400 VOLT) (UL/CSA), 63A-220/380V-240/415V (400 V0LT) (EUROPEAN) (3P+N+E), WATERTIGHT (IP67) CONNECTOR, DUAL STRAIN RELIEFS, "UNIVERSAL APPROVALS". RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-665

IEC 60309 (6h) 3 PHASE INLET, 60A-380/415V (400 VOLT), 63A-220/380V-240/415V (400 V0LT) (EUROPEAN) (3P+N+E), WATERTIGHT (IP67) & SPLASHPROOF (IP44) FLANGED POWER INLET, "UNIVERSAL APPROVALS", 90mmX90mm C TO C MOUNTING. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-27017

IEC 60309 (6h) 3 PHASE INLET, 60A-380/415V (400 VOLT) (UL/CSA), 63A-220/380V-240/415V (400 V0LT) (EUROPEAN) (3P+N+E), WATERTIGHT (IP67) & SPLASHPROOF (IP44) DOWN ANGLE POWER INLET, "UNIVERSAL APPROVALS", 90mmX90mm C TO C MOUNTING. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-3199

IEC 60309 (6h) 3 PHASE CONNECTOR, 100A-380/415V (400 VOLT) (UL/CSA), 125A-220/380V-240/415V (400 V0LT) (EUROPEAN) (3P+N+E), WATERTIGHT (IP67) CONNECTOR, DUAL STRAIN RELIEFS, "UNIVERSAL APPROVALS". RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-679

IEC 60309 (6h) 3 PHASE INLET, 100A-380/415V (400 VOLT) (UL/CSA), 125A-220/380V-240/415V (400 V0LT) (EUROPEAN) (3P+N+E), WATERTIGHT (IP67) POWER INLET, "UNIVERSAL APPROVALS", 104mmX104mm C TO C MOUNTING. RED. PIN AND SLEEVE IEC 60309 BROCHURE.

888-678

IEC 60309 (6h) 3 PHASE INLET, 100A-380/415V (400 VOLT) (UL/CSA), 125A-220/380V-240/415V (400 V0LT) (EUROPEAN) (3P+N+E), WATERTIGHT (IP67) POWER INLET & WALL BOX, "UNIVERSAL APPROVALS". RED. PIN AND SLEEVE IEC 60309 BROCHURE.
