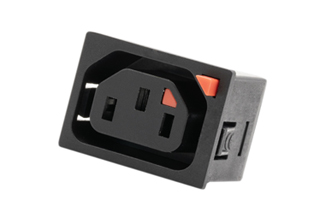

Part Number57320-LK
Description: LOCKING IEC 60320 C-13 PANEL MOUNT POWER OUTLET, 10A-250V EUROPEAN APPROVED (ENEC 19, ASTA), 15A-250V C(RU)US (UL/CSA) APPROVED, SNAP-IN PANEL MOUNT ON 1.5mm THICK PANEL, 6.3x.08mm (.250 x .032), QUICK CONNECT / SOLDER TERMINALS, 2 POLE-3 WIRE GROUNDING (2P+E), THERMOPLASTIC (UL94V-0). BLACK.

NOTE: Outlet accepts accepts and "Locks In" C-14 type plugs. Press in and hold down the Red Button until the C-14 plug is fully seated in the C-13 locking outlet, then release the button. This procedure Locks in the C-14 plug. Push in and hold down Red button to unlock the C-14 plug.

NOTE: IEC 60320 INTERGRATED COMPONENT LOCKING SYSTEM. IEC 60320 C-13 Locking Power strip and Locking Power Cords when mated with # 57320-LK Panel Mount Power Outlet provides a system wide configuration of intergrated Locking components that prevent accidental disconnects.
Call Application Specialist for details.

Note: C-13, C-14 Locking Power Cords, Locking outlet strips, Locking C-19 Panel Mount Outlets are listed below in related products.
Scroll down to view.
Approvals: C(RU)US, ENEC 19, ASTA
Certifications: REACH, RoHS, CE
Standards: IEC 60320 (C-13), UL 498, CSA C22.2 NO. 42, IEC/EN 60320-2-2
Data Sheet:
Dimensional Data Sheet
Related Products:

57320-LK

LOCKING IEC 60320 C-13 PANEL MOUNT POWER OUTLET, 10A-250V EUROPEAN APPROVED (ENEC 19, ASTA), 15A-250V C(RU)US (UL/CSA) APPROVED, SNAP-IN PANEL MOUNT ON 1.5mm THICK PANEL. BLACK.

57055-LK

IEC 60320 C-13 LOCKING CONNECTOR (REWIREABLE), 15 AMP. 125V-250V, C(UL)US LISTED, 10 AMP. 250 VOLT EUROPEAN APPROVED (KEMA-KEUR). BLACK.
NOTE: LOCKS ONTO IEC 60320 C-14 PDU POWER STRIPS, C-14 INLETS, C-14 PLUGS, C-14 JUMPER CORDS. RED COLOR RELEASE LEVER UNLOCKS THE C-13 CONNECTOR.

62150-LKV

LOCKING IEC 60320 C-13 C-14, 10A-250V PDU POWER STRIP, 6 IEC 60320 LOCKING C-13 POWER OUTLETS , IEC 60320 C-14 POWER INLET, "19 IN."VERTICAL RACK OR SURFACE MOUNT. BLACK. Temp. Range -10C + 45 C.

62150-LKH

LOCKING IEC 60320 C-13 C-14, 10A-250V PDU POWER STRIP, 6 IEC 60320 LOCKING C-13 POWER OUTLETS , IEC 60320 C-14 POWER INLET, "19 IN." HORIZONTAL RACK MOUNT. BLACK. Temp. Range -10C + 45 C.

60460-LK

LOCKING IEC 60320 C-13 C-14, 10A-250V PDU POWER STRIP, 6 IEC 60320 LOCKING C-13 POWER OUTLETS , C-14 POWER PLUG WITH 3M (9FT-9IN) CORD, "19 IN." RACK OR SURFACE MOUNT. BLACK.

61460-LK

LOCKING IEC 60320 C-13 C-14, 10A-250V PDU POWER STRIP, 6 IEC 60320 LOCKING C-13 POWER OUTLETS , C-14 POWER PLUG WITH 3M (9FT-9IN) CORD, "19 IN." HORIZONTAL RACK MOUNT. BLACK.

98216-LK

LOCKING IEC 60320 C-13 TO C-14, 10A-250V POWER CORD, C(UL)US, VDE, TUV (UNIVERSAL APPROVALS), IEC 60320 LOCKING C-13 CONNECTOR, IEC 60320 C-14 PLUG, 1.0 METERS (3FT.-3IN.) (39") LONG. BLACK.
Length: 1.0 METERS (3FT.-3IN.)

98220-LK

LOCKING IEC 60320 C-13 TO C-14, 10A-250V POWER CORD, C(UL)US, VDE, TUV (UNIVERSAL APPROVALS), IEC 60320 LOCKING C-13 CONNECTOR, IEC 60320 C-14 PLUG, 2.0 METERS (6FT.-7IN.) (79") LONG. BLACK.
Length: 2.0 METERS (6FT.-7IN.)

98226-LK

LOCKING IEC 60320 C-13 TO C-14, 10A-250V POWER CORD, C(UL)US, VDE, TUV (UNIVERSAL APPROVALS), IEC 60320 LOCKING C-13 CONNECTOR, IEC 60320 C-14 PLUG, 2.5 METERS (8FT.-2IN.) (98") LONG. BLACK.
Length: 2.5 METERS (8FT.-2IN.)

98230-LK

LOCKING IEC 60320 C-13 TO C-14, 10A-250V POWER CORD, C(UL)US, VDE, TUV (UNIVERSAL APPROVALS), IEC 60320 LOCKING C-13 CONNECTOR, IEC 60320 C-14 PLUG, 3.1 METERS (10FT.-2IN.) (122") LONG. BLACK.
Length: 3.1 METERS (10FT.-2IN.)

98230X5M-LK

LOCKING IEC 60320 C-13 TO C-14, 10A-250V POWER CORD, C(UL)US, VDE, TUV (UNIVERSAL APPROVALS), IEC 60320 LOCKING C-13 CONNECTOR, IEC 60320 C-14 PLUG, 5.0 METERS (16FT.-5IN.) (197") LONG. BLACK.
Length: 5.0 METERS (16FT.-5IN.)

81400-LK

LOCKING 10A-125V POWER CORD, NEMA 5-15P PLUG, IEC 60320 LOCKING C-13 CONNECTOR, SJTO 18/3 AWG, 2.5 METERS (8FT-.2IN.) (98") LONG. BLACK.
Length: 2.5 METERS (8FT.-2IN.)
NOTE: IEC 60320 C-13 CONNECTOR LOCKS ONTO C-14 POWER INLETS OR C-14 PLUGS. ( RED COLOR (SLIDE RELEASE LATCH) UNLOCKS THE C-13 CONNECTOR.)

81415-LK6

LOCKING 15A-125V POWER CORD, NEMA 5-15P PLUG, IEC 60320 LOCKING C-13 CONNECTOR, SJT 14/3 AWG., 1.8 METERS (6 FEET) (72") LONG. BLACK.
Length: 1.8 METERS (6 FEET)
NOTE: IEC 60320 C-13 CONNECTOR LOCKS ONTO C-14 POWER INLETS OR C-14 PLUGS. ( RED COLOR (SLIDE RELEASE LATCH) UNLOCKS THE C-13 CONNECTOR.)

81415-LK12

LOCKING 15A-125V POWER CORD, NEMA 5-15P PLUG, IEC 60320 LOCKING C-13 CONNECTOR, SJT 14/3 AWG., 3.66 METERS (12 FEET) (144") LONG. BLACK.
Length: 3.66 METERS (12 FEET)
NOTE: IEC 60320 C-13 CONNECTOR LOCKS ONTO C-14 POWER INLETS OR C-14 PLUGS. ( RED COLOR (SLIDE RELEASE LATCH) UNLOCKS THE C-13 CONNECTOR.)

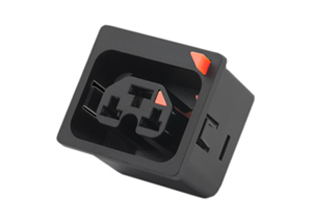

57103-LK

LOCKING IEC 60320 C-19 PANEL MOUNT POWER OUTLET, 16A-250V EUROPEAN APPROVED (ENEC 19, ASTA), 20A-250V C(RU)US (UL/CSA) APPROVED, SNAP-IN PANEL MOUNT. BLACK.

62400-LKV

LOCKING IEC 60320 C19 C20 16A-250V PDU POWER STRIP, 6 IEC 60320 LOCKING C-19 POWER OUTLETS,IEC 60320 C-20 POWER INLET, "19 IN." VERTICAL RACK OR SURFACE MOUNT, (1U) METAL ENCLOSURE, 16 AMP. DOUBLE POLE CIRCUIT BREAKER. BLACK.

62400-LKH

LOCKING IEC 60320 C-19 C-20, 16A-250V PDU POWER STRIP, 6 IEC 60320 LOCKING C-19 POWER OUTLETS, IEC 60320 C-20 POWER INLET, "19 IN." HORIZONTAL RACK MOUNT, (1U) METAL ENCLOSURE, 16 AMP. DOUBLE POLE CIRCUIT BREAKER. BLACK.

60556-LK

LOCKING IEC 60320 C19, C20, 16A-250V, 6 OUTLET PDU POWER STRIP, LOCKING C-19 POWER OUTLETS, C-20 POWER PLUG WITH 3M (9FT-9IN) CORD, "19 IN." RACK OR SURFACE MOUNT, (1U) METAL ENCLOSURE, ON/OFF DOUBLE POLE ILLUMINATED SWITCH. BLACK.

61556-LK

LOCKING IEC 60320 C19, C20, 16A-250V, 6 OUTLET PDU POWER STRIP, LOCKING C-19 POWER OUTLETS, C-20 POWER PLUG WITH 3M (9FT-9IN) CORD, "19 IN." HORIZONTAL RACK MOUNT, (1U) METAL ENCLOSURE, ON/OFF DOUBLE POLE ILLUMINATED SWITCH. BLACK.

80450-LK

LOCKING 15A-125V POWER CORD, NEMA 5-15P PLUG, IEC 60320 LOCKING C-19 CONNECTOR, SJTO 14/3 AWG. 105 DEGREE C, 2.5 METERS (8FT.-2IN.) (98") LONG. BLACK.
Length: 2.5 METERS (8FT.-2IN.)

Note. Nema 5-15P plugs mate with Nema 5-15R (15A-125V) & Nema 5-20R (20A-125V) receptacles/connectors.

80450-LK6

LOCKING 15A-125V POWER CORD, NEMA 5-15P PLUG, IEC 60320 LOCKING C-19 CONNECTOR, SJTO 14/3 AWG. 105 DEGREE C, 1.8 METERS (6 FEET) (72") LONG. BLACK.
Length: 1.8 METERS (6 FEET)

Note. Nema 5-15P plugs mate with Nema 5-15R (15A-125V) & Nema 5-20R (20A-125V) receptacles/connectors.

80450-LK12

LOCKING 15A-125V POWER CORD, NEMA 5-15P PLUG, IEC 60320 LOCKING C-19 CONNECTOR, SJTO 14/3 AWG. 105 DEGREE C, 3.66 METERS (12 FEET) (144") LONG. BLACK.
Length: 3.66 METERS (12 FEET)

Note. Nema 5-15P plugs mate with Nema 5-15R (15A-125V) & Nema 5-20R (20A-125V) receptacles/connectors.
