Part Number | 5666-SSAN |
Description: | 15 AMPERE-250 VOLT NEMA 6-15P ANGLE PLUG, IMPACT RESISTANT NYLON BODY, 2 POLE-3 WIRE GROUNDING (2P+E), SPECIFICATION GRADE. BLACK / WHITE.
Notes: * Terminals accept 18/3, 16/3, 14/3, 12/3 AWG size conductors. Strain relief (cord grip range) = 0.300-0.650" dia. * Temp. range = -40°C to +75°C. * Plug cover design allows power cord to exit at 8 different angles. View "Dimensional Data Sheet" below for details. * NEMA 6-15P plugs connect with NEMA 6-15R (15A-250V) & NEMA 6-20R (20A-250V) receptacles, connectors, outlets. * Plugs, receptacles, outlets, power strips, connectors, inlets, power cords, weatherproof outlets, plug adapters are listed below in related products. Scroll down to view. |
Approvals: | FILE #E474924 |
Certifications: | UL, CSA, REACH, RoHS3 |
Standards: | NEMA ® WD-6 Compliant, UL 498, NEMA 6-15P, CSA C22.2 No. 42-10 R2015, ANSI C73.20 |
Technical Data: | View Technical Data Drawing: 5666-SSAN.pdf |
Price & Avail: | Contact Sales Office for Price and Delivery: Quantity Discount Incentives Available - Majority of all Products are in Stock |
Scroll down to view
Related Products
Related Products
Related Products:

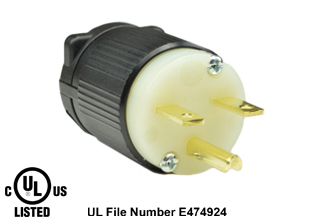

5666-X
15A-250V NEMA 6-15P PLUG, SPECIFICATION GRADE. BLACK / WHITE.
Notes:
* Accepts 18/3-12/3 AWG size conductors. Strain relief (cord grip range) = 0.300-0.650" dia.
* NEMA 6-15P plugs connect with NEMA 6-15R (15A-250V) & NEMA 6-20R (20A-250V) receptacles, connectors, outlets.

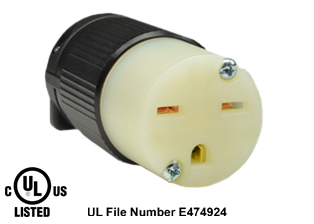

5669-X
15A-250V NEMA 6-15R CONNECTOR, SPECIFICATION GRADE. BLACK / WHITE.
Notes:
* Accepts 18/3-12/3 AWG size conductors. Strain relief (cord grip range) = 0.300-0.650" Dia.

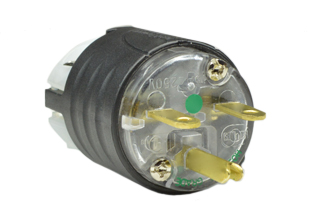

5666-XHG
15A-250V HOSPITAL GRADE PLUG, GREEN DOT NEMA 6-15P, POWER CORD DUST / MOISTURE SHIELD, IMPACT RESISTANT NYLON BODY, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.230-0.720" CORD GRIP RANGE. UL/CSA LISTED. BLACK/CLEAR.
Notes:
* NEMA 6-15P plugs connect with NEMA 6-15R (15A-250V) & NEMA 6-20R (20A-250V) receptacles/connectors.

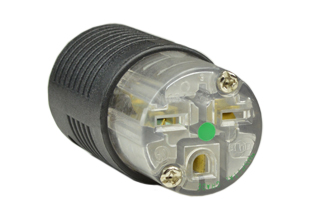

5669-XHG
15A-250V HOSPITAL GRADE CONNECTOR, GREEN DOT NEMA 6-15R, POWER CORD DUST / MOISTURE SHIELD, IMPACT RESISTANT NYLON BODY, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.230-0.720" CORD GRIP RANGE. UL/CSA LISTED. BLACK/CLEAR.
Notes:
* NEMA 6-15P plugs connect with NEMA 6-15R (15A-250V) & NEMA 6-20R (20A-250V) receptacles/connectors.
5666-BK
15A-250V NEMA 6-15P PLUG. BLACK.
Notes:
* NEMA 6-15P plugs mate with NEMA 6-15R (15A-250V) & NEMA 6-20R (20A-250V) receptacles, connectors, outlets.
5669-BK
15A-250V CONNECTOR NEMA 6-15R. BLACK.
Notes:
* NEMA 6-15R connectors connect with NEMA 6-15P (15A-250V) power cords, plugs, flanged inlets.
Bulk-Electrical-Wire-Cable
Bulk International Electrical Wire Cable
* HAR Marked European Approved H05VV-F, H07RN-F, H05RN-F, H05RR-F Wire.
* Dual European and UL Approved HAR SJTO SJTOW H05VV-F Wire.
* Dual European and UL Approved HAR SOOW H07RN-F Wire.

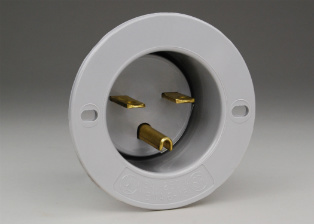

5678-SS
