| Part Number | TYPE-B-PLUGS |

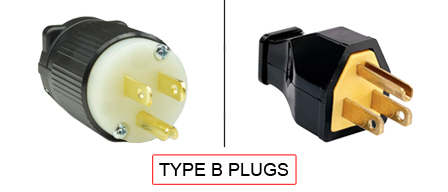

| Description: | TYPE B plugs are used in the following Countries:
Primary Countries known for using TYPE B Plugs is the United States, Canada, Taiwan, Japan and Jamaica. Additional Countries that use TYPE B plugs are American Samoa, Anguilla, Antigua & Barbuda, Aruba, Bahamas, Barbados, Belize, Bermuda, Bolivia, British Virgin Islands, Cayman Islands, Columbia, Costa Rica, Cuba, Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Guyana, Haiti, Honduras, Liberia, Mariana Islands, Marshall Islands, Mexico, Micronesia, Midway Islands, Montserrat, Nicaragua, Palau, Panama, Peru, Philippines, Puerto Rico, Trinidad & Tobago, Turks & Caicos Islands, US Virgin Islands, Venezuela, Wake Island. * Additional Type B Electrical Devices: * Type B Connectors * Type B Outlets * Type B Power Cords * Type B Power Strips * Type B Adapters * Worldwide Selector. All Countries by TYPE. View examples of TYPE B plugs below. |
| Approvals: |  FILE #E474924 (North America), PSE JET (Japan), BSMI (Taiwan) |
| Certifications: | REACH, RoHS3 |
| Price & Avail: | Contact Sales Office for Price and Delivery: Quantity Discount Incentives Available - Majority of all Products are in Stock |
Related Products:
5266-X
15A-125V NEMA 5-15P PLUG, TYPE B, SPECIFICATION GRADE. BLACK / WHITE.
Approvals= c(UL)us (USA & Canada)
Notes:
* Accepts 18/3-12/3 AWG size conductors. Strain relief (cord grip range) = 0.300-0.650" dia.
5266-XCL
15A-125V NEMA 5-15P NEON LIGHTED CLEAR TRANSPARENT PLUG, TYPE B, SPECIFICATION GRADE. CLEAR.
Notes:
* Accepts 18/3-10/3 AWG size conductors. Strain relief (cord grip range) = 0.300-0.655" dia.
* NEMA 5-15P plugs connect with NEMA 5-15R 15A-125V & NEMA 5-20R 20A-125V receptacles, connectors, outlets.
5266-SSAN
15 AMPERE-125 VOLT NEMA 5-15P ANGLE PLUG, TYPE B, SPECIFICATION GRADE. BLACK / WHITE.
Notes:
* Accepts 18/3-12/3 AWG size conductors. Strain relief (cord grip range) = 0.300-0.650" dia.
* NEMA 5-15P plugs connect with NEMA 5-15R 15A-125V & NEMA 5-20R 20A-125V receptacles, connectors, outlets.
5276-BK
15A-125V NEMA 5-15P PLUG, TYPE B, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Plug connects with Type B American Outlets Nema 5-15R, 5-20R, Thailand Type O Outlets, Universal Multi-Configuration Outlets.
* Max. Cable O.D.= 0.591" (15mm)
* Terminals accept 18/3, 16/3, 14/3, conductors.
* Screwless "Twist & Lock" cover / strain relief design provides faster assembly.
5276-CD
15A-125V NEMA 5-15P PLUG, TYPE B, COMPACT DESIGN, 2 POLE-3 WIRE GROUNDING (2P+E). BLACK.
Notes:
* Plug connects with Type B American Outlets Nema 5-15R, 5-20R, Thailand Type O outlets, Universal and Multi-Configuration outlets.
* Max. O.D. cable = 0.370".
* Terminals accept 18/3, 16/3, 14/3 conductors.
* Terminal screw torque = 14-18 in. lbs.
5266-GFCI
GFCI PLUG, 15A-120V VOLT 60Hz, NEMA 5-15P, 4-6mA TRIP, CLASS A, RAINPROOF, TEST / RESET BUTTONS, ON / OFF INDICATOR, ACCEPTS 18AWG-12AWG CONDUCTORS, CORD GRIP RANGE 0.358-0.480". BLACK.
Notes:
* Connects with NEMA 5-15R 15A-125V & NEMA 5-20R 20A-125V outlets.
5366-GFCI
GFCI PLUG, 20A-120V VOLT 60Hz, NEMA 5-20P, 4-6mA TRIP, CLASS A, RAINPROOF, TEST / RESET BUTTONS, ON / OFF INDICATOR, ACCEPTS 18AWG-12AWG CONDUCTORS, CORD GRIP RANGE 0.358-0.480". BLACK.
Notes:
* NEMA 5-15P (15A-120V) version available #5266-GFCI.
5266-XHG
15A-125V HOSPITAL GRADE PLUG, TYPE B, GREEN DOT NEMA 5-15P, POWER CORD DUST / MOISTURE SHIELD, IMPACT RESISTANT NYLON, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.300-0.655" CORD GRIP RANGE. BLACK/WHITE.
5266-XHGC
15A-125V HOSPITAL GRADE PLUG, TYPE B, GREEN DOT NEMA 5-15P, POWER CORD DUST / MOISTURE SHIELD, IMPACT RESISTANT NYLON BODY, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.230-0.720" CORD GRIP RANGE. UL/CSA LISTED. BLACK/CLEAR.
5266-HGAN
15A-125V HOSPITAL GRADE ANGLE PLUG, TYPE B, GREEN DOT NEMA 5-15P, IMPACT RESISTANT, TERMINALS ACCEPT 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.300-0.690" CORD GRIP RANGE. CLEAR/BLACK.
Notes:
* Four angle cover design. Power cord exits up, down, left or right.
8115
15A-125V HOSPITAL GRADE PLUG, TYPE B, GREEN DOT NEMA 5-15P PLUG, "CLAM SHELL" DESIGN CORD GRIP, TERMINALS ACCEPT 10/3, 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.230-0.655" CORD GRIP RANGE. WHITE. UL/CSA LISTED.
78530
JAPAN PLUG, 15 AMPERE-125 VOLT, JIS C 8303 (JA1-15P), TYPE B PLUG, REWIREABLE PLUG, IMPACT RESISTANT NYLON BODY, MAX. CORD O.D. = 0.465" DIA. BLACK.
Notes:
* Certifications: PSE, JET, JIS C 8303, RoHS.
5266-X-PSE
15A-125V NEMA 5-15P JAPAN PLUG (JA1-15P), TYPE B, SPECIFICATION GRADE. BLACK / WHITE.
Notes:
* Dual Approvals: cULus (USA & Canada), PSE (Japan).
* Certifications: cULus (USA & Canada), PSE JET (Japan), RoHS3
* Accepts 18/3-12/3 AWG size conductors.
* Strain relief (cord grip range) = 0.300-0.650" dia.
78540
JAPAN HOSPITAL PLUG, 15A-125V, JIS T 1021, JIS C 8303 (JA1-15P), TYPE B, REWIREABLE, IMPACT RESISTANT, TERMINALS ACCEPT 12/3, 14/3, 16/3, 18/3 AWG CONDUCTORS, 0.300-0.625" CORD GRIP RANGE. TRANSPARENT.
JIS T 1021 Hospital Standard. PSE APPROVED.
81841
TAIWAN PLUG, 15 AMPERE 125 VOLT, REWIREABLE PLUG, RUBBER BODY. BLACK
