North America Power Cords - AC Cables

North America Power Cords and Power Supply Cord Sets | Straight Blade, Hospital Grade and Locking

North America NEMA 5-15 Straight Blade Power Cords North America NEMA 5-15 Hospital Grade Power Cords North America NEMA L5-15 Locking Power Cords   NEMA 5-15P, L5-15P: 15 Amp-125 Volt AC, 2 Pole 3 Wire Grounding North America NEMA 5-15 Straight Blade Power Cord North America NEMA 5-15 Hospital Grade Power Cord North America NEMA L5-15 Locking Power Cord

North America NEMA 5-20 Straight Blade Power Cords North America NEMA 5-20 Hospital Grade Power Cords North America NEMA L5-20 Locking Power Cords   NEMA 5-20P, L5-20P: 20 Amp-125 Volt AC, 2 Pole 3 Wire Grounding North America NEMA 5-20 Straight Blade Power Cord North America NEMA 5-20 Hospital Grade Power Cord North America NEMA L5-20 Locking Power Cord

North America NEMA 6-15 Straight Blade Power Cords North America NEMA 6-15 Hospital Grade Power Cords North America NEMA L6-15 Locking Power Cords   NEMA 6-15P, L6-15P: 15 Amp-250 Volt AC, 2 Pole 3 Wire Grounding North America NEMA 6-15 Straight Blade Power Cord North America NEMA 6-15 Hospital Grade Power Cord North America NEMA L6-15 Locking Power Cord

North America NEMA 6-20 Straight Blade Power Cords North America NEMA 6-20 Hospital Grade Power Cords North America NEMA L6-20 Locking Power Cords   NEMA 6-20P, L6-20P: 20 Amp-250 Volt AC, 2 Pole 3 Wire Grounding North America NEMA 6-20 Straight Blade Power Cord North America NEMA 6-20 Hospital Grade Power Cord North America NEMA L6-20 Locking Power Cord

North America NEMA L5-30 Locking Power Cords North America NEMA L6-30 Locking Power Cords   NEMA L5-30P 30A-125V AC & NEMA L6-30P 30A-250V AC: 2 Pole 3 Wire Grounding North America NEMA L5-30 Locking Power Cord North America NEMA L6-30 Locking Power Cord

NEMA 5-15, L5-15 Power Cords - AC Cables
Straight Blade, Hospital Grade and Locking

North America NEMA 5-15 Straight Blade Cords North America NEMA 5-15 Hospital Grade Power Cords North America NEMA L5-15 Locking Power Cords

Specification Data: North America Power Cords, AC Cables

Plug StandardNEMA 5-15 Type B Plug, NEMA 5-15 Hospital Grade Plug, NEMA L5-15 Locking PlugNorth America Power Cords and AC Cables
Connector StandardsIEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsSJTO, SJT, SJTOW, SVT, SPT
Conductor Size / Rating18 AWG @ 10 Ampere, 16 AWG @ 13 Ampere, 14 AWG @ 15 Ampere
MaterialPVC, Jacket Color Black, Temperature 60C & 105C
Conductor Color CodeBlack, White, Green (3 wire)
Jacket O.D. (Approx.)18 AWG = .31, 16 AWG = .34, 14 AWG = .37
Substances ComplianceREACH, RoHS Compliant

Power Cord Notes: North America power cords are black as standard color. North America power cords in white or gray are special order. Custom length and shielded North America AC power cables available. Terminated, custom stripping, hanked North America cords available. IEC 60320 C-15 120C connector available on some North America AC power cords.

North America NEMA 5-15 Straight Blade Power Cords NEMA 5-15 Straight Blade Power Cords - AC Cables North America NEMA 5-15 Straight Blade Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
10 Amp, 13 Amp, 15 Amp - NEMA 5-15, Straight Blade, Type B Plug
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-15 plug to straight C-13 connector - North America Power Cord
North America Power Cords
NEMA 5-15P              IEC 60320 C-13
Cordage - 18/3 AWG, 16/3 AWG, 14/3 AWG - 105 C
Part No.Rating DescriptionLength
81400 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
2.5 m
81400X1FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
1 ft
81400X18IN 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
18 in
81400X2FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
2 ft
81400X3FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
3 ft
81400X4FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
4 ft
81400X5FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
5 ft
81400X6FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
6 ft
81400X7FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
7 ft
81400X8FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
8 ft
81400X9FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
9 ft
81400X10FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
10 ft
81400X12FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
12 ft
81400X15FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
15 ft
81400X20FT 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
20 ft
81400X1M 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
1 m
81400X2M 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
2 m
81400X3M 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
3 m
81400-LK 10A 125V AC "Locking" Straight
C-13 Connector
10 Amp, 18/3 AWG
2.5 m
81400-S 10A 125V AC Straight
C-13 Connector
10 Amp, 18/3 AWG
Shielded Cordage
2.5 m
Part No.Rating DescriptionLength
81413 13A 125V AC Straight
C-13 Connector
13 Amp, 16/3 AWG
2.5 m
Part No.Rating DescriptionLength
81415 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
2.5 m
81415X1FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
1 ft
81415X18IN 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
18 in
81415X2FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
2 ft
81415X3FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
3 ft
81415X4FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
4 ft
81415X5FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
5 ft
81415X6FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
6 ft
81415X8FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
8 ft
81415X10FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
10 ft
81415X12FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
12 ft
81415X15FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
15 ft
81415X20FT 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
20 ft
81415-LK6 15A 125V AC "Locking" Straight
C-13 Connector
15 Amp, 14/3 AWG
6 ft
81415-LK12 15A 125V AC "Locking" Straight
C-13 Connector
15 Amp, 14/3 AWG
12 ft
Cordage - 18/3 AWG, 16/3 AWG, 14/3 AWG - 105 C
North America NEMA 5-15 plug to straight C-13 connector - North America Power Cord
North America Power Cords
NEMA 5-15P              IEC 60320 C-13

North America Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-13 Connector
10 Amp, 13 Amp, 15 Amp - NEMA 5-15, Straight Blade, Type B Plug
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-15 plug to right-angle C-13 connector - North America Power Cord
North America Power Cords
NEMA 5-15P              IEC 60320 C-13
Cordage - 18/3 AWG, 16/3 AWG, 14/3 AWG - 105 C
Part No.Rating DescriptionLength
81400-RA 10A 125V AC Right-Angle
C-13 Connector
10 Amp, 18/3 AWG
2.5 m
81413-RA 13A 125V AC Right-Angle
C-13 Connector
13 Amp, 16/3 AWG
2.5 m
81415-RA 15A 125V AC Right-Angle
C-13 Connector
15 Amp, 14/3 AWG
2.5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-13 Connector
10 Amp, 13 Amp, 15 Amp - NEMA 5-15, Straight Blade, Type B Plug
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-15 plug to left-angle C-13 connector - North America Power Cord
North America Power Cords
NEMA 5-15P              IEC 60320 C-13
Cordage - 18/3 AWG, 16/3 AWG, 14/3 AWG - 105 C
Part No.Rating DescriptionLength
81400-LA 10A 125V AC Left-Angle
C-13 Connector
10 Amp, 18/3 AWG
2.5 m
81413-LA 13A 125V AC Left-Angle
C-13 Connector
13 Amp, 16/3 AWG
2.5 m
81415-LA 15A 125V AC Left-Angle
C-13 Connector
15 Amp, 14/3 AWG
2.5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Y-Splitter Straight C-13 Connectors (x2)
15 Amp - NEMA 5-15, Straight Blade, Type B Plug
~ Click Part Number for approvals, specifications and print. ~

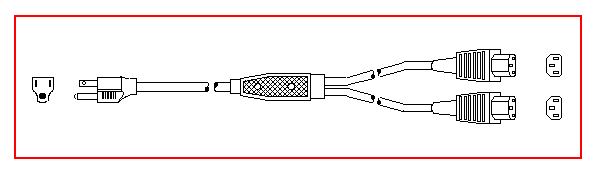

North America NEMA 5-15 plug to y-splitter straight C-13 connectors (x2) - North America Power Cord
North America Power Cords
NEMA 5-15P              IEC 60320 C-13 (x2)
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
81415-Y 15A 125V AC Y-Splitter Cord
Straight C-13 Connectors (x2)
15 Amp, 14/3 AWG
3.1 m
81415-Y1M 15A 125V AC Y-Splitter Cord
Straight C-13 Connectors (x2)
15 Amp, 14/3 AWG
1 m
81415-Y1.5M 15A 125V AC Y-Splitter Cord
Straight C-13 Connectors (x2)
15 Amp, 14/3 AWG
1.5 m
81415-Y2M 15A 125V AC Y-Splitter Cord
Straight C-13 Connectors (x2)
15 Amp, 14/3 AWG
2 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
15 Amp - NEMA 5-15, Straight Blade, Type B Plug
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-15 plug to straight C-19 connector - North America Power Cord
North America Power Cords
NEMA 5-15P              IEC 60320 C-19
Cordage - 14/3 AWG, 12/3 AWG - 105 C
Part No.Rating DescriptionLength
80450 15A 125V AC Straight
C-19 Connector
15 Amp, 14/3 AWG
2.5 m
80452 15A 125V AC Straight
C-19 Connector
15 Amp, 12/3 AWG
2.5 m
80450-LK 15A 125V AC "Locking" Straight
C-19 Connector
15 Amp, 14/3 AWG
2.5 m
80450-LK6 15A 125V AC "Locking" Straight
C-19 Connector
15 Amp, 14/3 AWG
6 ft
80450-LK12 15A 125V AC "Locking" Straight
C-19 Connector
15 Amp, 14/3 AWG
12 ft

North America Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-19 Connector
15 Amp - NEMA 5-15, Straight Blade, Type B Plug
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-15 plug to right-angle C-19 connector - North America Power Cord
North America Power Cords
NEMA 5-15P              IEC 60320 C-19
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
80450-RA 15A 125V AC Right-Angle
C-19 Connector
15 Amp, 14/3 AWG
2.5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-19 Connector
15 Amp - NEMA 5-15, Straight Blade, Type B Plug
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-15 plug to left-angle C-19 connector - North America Power Cord
North America Power Cords
NEMA 5-15P              IEC 60320 C-19
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
80450-LA 15A 125V AC Left-Angle
C-19 Connector
15 Amp, 14/3 AWG
2.5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-5 Connector
10 Amp - NEMA 5-15, Straight Blade, Type B Plug
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-15 plug to straight C-5 connector - North America Power Cord
North America Power Cords
NEMA 5-15P              IEC 60320 C-5
Cordage - 18/3 AWG - 60 C
Part No.Rating DescriptionLength
82950 10A 125V AC Straight
C-5 Connector
10 Amp, 18/3 AWG
1.8 m

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
10 Amp, 13 Amp, 15 Amp - NEMA 5-15, Straight Blade, Type B Plug
~ Click Part Number for approvals, specifications and print. ~

North America Power Cord - North America NEMA 5-15 plug to Unterminated End
North America Power Cords
NEMA 5-15P              Unterminated
Cordage - 18/3 AWG, 16/3 AWG, 14/3 AWG - 105 C
Part No.Rating DescriptionLength
81440 10A 125V AC Straight plug
10 Amp, 18/3 AWG
2.5 m
81440X10FT 10A 125V AC Straight plug
10 Amp, 18/3 AWG
10 ft
81440X12FT 10A 125V AC Straight plug
10 Amp, 18/3 AWG
12 ft
81440X15FT 10A 125V AC Straight plug
10 Amp, 18/3 AWG
15 ft
81440X20FT 10A 125V AC Straight plug
10 Amp, 18/3 AWG
20 ft
Part No.Rating DescriptionLength
81450 13A 125V AC Straight plug
13 Amp, 16/3 AWG
2.5 m
Part No.Rating DescriptionLength
81460 15A 125V AC Straight plug
15 Amp, 14/3 AWG
2.5 m
81460X10FT 15A 125V AC Straight plug
15 Amp, 14/3 AWG
10 ft
81460X12FT 15A 125V AC Straight plug
15 Amp, 14/3 AWG
12 ft
81460X15FT 15A 125V AC Straight plug
15 Amp, 14/3 AWG
15 ft
81460X20FT 15A 125V AC Straight plug
15 Amp, 14/3 AWG
20 ft
Cordage - 18/3 AWG, 16/3 AWG, 14/3 AWG - 105 C
North America Power Cord - North America NEMA 5-15 plug to Unterminated End
North America Power Cords
NEMA 5-15P              Unterminated

North America NEMA 5-15 Hospital Grade Power Cords NEMA 5-15 Hospital Grade Power Cords - AC Cables North America NEMA 5-15 Hospital Grade Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
10 Amp, 13 Amp, 15 Amp - NEMA 5-15, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade NEMA 5-15 plug to straight C-13 connector - North America Hospital Grade Power Cord
North America Power Cords
NEMA 5-15P       Hospital Grade       IEC 60320 C-13
Hospital Grade Power Cords with C-13 Connector,
Cordage - 18/3 AWG, 16/3 AWG, 14/3 AWG - 105 C
Part No.Rating DescriptionLength
82400 Hospital Grade
10A 125V AC
18/3 AWG Cordage
Gray Plug & Connector,
Gray Cordage
10 ft
82405 Hospital Grade
10A 125V AC
18/3 AWG Cordage
Clear Plug & Connector,
Gray Cordage
10 ft
82410 Hospital Grade
10A 125V AC
18/3 AWG Cordage
Black Plug & Connector,
Black Cordage
10 ft
Part No.Rating DescriptionLength
82415 Hospital Grade
13A 125V AC
16/3 AWG Cordage
Gray Plug & Connector,
Gray Cordage
10 ft
82420 Hospital Grade
13A 125V AC
16/3 AWG Cordage
Clear Plug & Connector,
Gray Cordage
10 ft
82425 Hospital Grade
13A 125V AC
16/3 AWG Cordage
Black Plug & Connector,
Black Cordage
10 ft
Part No.Rating DescriptionLength
82430 Hospital Grade
15A 125V AC
14/3 AWG Cordage
Gray Plug & Connector,
Gray Cordage
10 ft
82435 Hospital Grade
15A 125V AC
14/3 AWG Cordage
Clear Plug & Connector,
Gray Cordage
10 ft
82440 Hospital Grade
15A 125V AC
14/3 AWG Cordage
Black Plug & Connector,
Black Cordage
10 ft
82440-LK Hospital Grade
15A 125V AC
14/3 AWG Cordage
"Locking" Connector
Black Plug & Connector,
Black Cordage
10 ft

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
15 Amp - NEMA 5-15, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade NEMA 5-15 plug to straight C-19 connector - North America Hospital Grade Power Cord
North America Power Cords
NEMA 5-15P       Hospital Grade       IEC 60320 C-19
Hospital Grade Power Cords with C-19 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
82445 Hospital Grade
15A 125V AC
14/3 AWG Cordage
Gray Plug & Connector,
Gray Cordage
10 ft
82450 Hospital Grade
15A 125V AC
14/3 AWG Cordage
Clear Plug & Connector,
Gray Cordage
10 ft
82460 Hospital Grade
15A 125V AC
14/3 AWG Cordage
Black Plug & Connector,
Black Cordage
10 ft

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
10 Amp, 13 Amp, 15 Amp - NEMA 5-15, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade Power Cord - North America Hospital Grade NEMA 5-15 plug to Unterminated End
North America Power Cords
NEMA 5-15P       Hospital Grade       Unterminated
Hospital Grade Power Cords,
Cordage - 18/3 AWG, 16/3 AWG, 14/3 AWG - 105 C
Part No.Rating DescriptionLength
82465 Hospital Grade
10A 125V AC
18/3 AWG Cordage
Gray Plug,
Gray Cordage
10 ft
82470 Hospital Grade
10A 125V AC
18/3 AWG Cordage
Clear Plug,
Gray Cordage
10 ft
82475 Hospital Grade
10A 125V AC
18/3 AWG Cordage
Black Plug,
Black Cordage
10 ft
Part No.Rating DescriptionLength
82480 Hospital Grade
13A 125V AC
16/3 AWG Cordage
Gray Plug,
Gray Cordage
10 ft
82485 Hospital Grade
13A 125V AC
16/3 AWG Cordage
Clear Plug,
Gray Cordage
10 ft
82490 Hospital Grade
13A 125V AC
16/3 AWG Cordage
Black Plug,
Black Cordage
10 ft
Part No.Rating DescriptionLength
82495 Hospital Grade
15A 125V AC
14/3 AWG Cordage
Gray Plug,
Gray Cordage
10 ft
82500 Hospital Grade
15A 125V AC
14/3 AWG Cordage
Clear Plug,
Gray Cordage
10 ft
82505 Hospital Grade
15A 125V AC
14/3 AWG Cordage
Black Plug,
Black Cordage
10 ft

North America NEMA L5-15 Locking Power Cords NEMA L5-15 Locking Power Cords - AC Cables North America NEMA L5-15 Locking Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
15 Amp - NEMA L5-15, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L5-15 Locking plug to straight C-13 connector - North America Power Cord
North America Power Cords
NEMA L5-15P       Locking       IEC 60320 C-13
Locking NEMA L5-15 Power Cords with C-13 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
90815 15A 125V AC
Locking Plug
Straight
C-13 Connector
2.5 m
90815-LK 15A 125V AC
Locking Plug
"Locking" Straight
C-13 Connector
2.44 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
15 Amp - NEMA L5-15, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L5-15 Locking plug to straight C-19 connector - North America Power Cord
North America Power Cords
NEMA L5-15P       Locking       IEC 60320 C-19
Locking NEMA L5-15 Power Cords with C-19 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
90800 15A 125V AC
Locking Plug
Straight
C-19 Connector
2.5 m
90800-LK 15A 125V AC
Locking Plug
"Locking" Straight
C-19 Connector
2.44 m

North America Power Cords, Power Supply Cord Sets toUnterminated Cord End
15 Amp - NEMA L5-15, Locking
~ Click Part Number for approvals, specifications and print. ~

North America Locking Power Cords - North America NEMA L5-15 Locking plug to Unterminated End
North America Power Cords
NEMA L5-15P       Locking       Unterminated
Locking NEMA L5-15 Power Supply Cord Set,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
90825 15A 125V AC Straight
Locking Plug
2.5 m

North America NEMA 1-15 Straight Blade Power Cords NEMA 1-15 Straight Blade Power Cords - AC Cables North America NEMA 1-15 Straight Blade Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-7 Connector
7.5 Amp - NEMA 1-15, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 1-15 plug to straight C-7 connector - North America Power Cord
North America Power Cords
NEMA 1-15P              IEC 60320 C-7
Cordage - 18/2 AWG - 105 C
Part No.Rating DescriptionLength
80900 7.5A 125V AC Straight
C-7 Connector
7.5 Amp, 18/2 AWG
SPT-1 Jacket
1.8 m
80900-A 7.5A 125V AC Straight
C-7 Connector
7.5 Amp, 18/2 AWG
SPT-2 Jacket
1.8 m

NEMA 5-20, L5-20 Power Cords - AC Cables
Straight Blade, Hospital Grade and Locking

North America NEMA 5-20 Straight Blade Power Cords North America NEMA 5-20 Hospital Grade Power Cords North America NEMA 5-20 Locking Power Cords

Specification Data: North America Power Cords, AC Cables

Plug StandardNEMA 5-20 Plug, NEMA 5-20 Hospital Grade Plug, NEMA L5-20 Locking PlugNorth America Power Cords and AC Cables
Connector StandardsIEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsSJTO, SJT, SJTOW, SVT, SPT
Conductor Size / Rating14 AWG @ 15 Ampere, 12 AWG @ 20 Ampere
MaterialPVC, Jacket Color Black, Temperature 60C & 105C
Conductor Color CodeBlack, White, Green (3 wire)
Jacket O.D. (Approx.)12 AWG = .44, 14 AWG = .37
Substances ComplianceREACH, RoHS Compliant

Power Cord Notes: North America power cords are black as standard color. North America power cords in white or gray are special order. Custom length and shielded North America AC power cables available. Terminated, custom stripping, hanked North America cords available. IEC 60320 C-15 120C connector available on some North America AC power cords.

North America NEMA 5-20 Straight Blade Power Cords NEMA 5-20 Straight Blade Power Cords - AC Cables North America NEMA 5-20 Straight Blade Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
15 Amp - NEMA 5-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-20 plug to straight C-13 connector - North America Power Cord
North America Power Cords
NEMA 5-20P              IEC 60320 C-13
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
80520 15A 125V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
2.5 m
80520-LK 15A 125V AC "Locking" Straight
C-13 Connector
15 Amp, 14/3 AWG
2.44 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
20 Amp - NEMA 5-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-20 plug to straight C-19 connector - North America Power Cord
North America Power Cords
NEMA 5-20P              IEC 60320 C-19
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
80551 20A 125V AC Straight
C-19 Connector
20 Amp, 12/3 AWG
2.5 m
80551-LK 20A 125V AC "Locking" Straight
C-19 Connector
20 Amp, 12/3 AWG
2.44 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-19 Connector
20 Amp - NEMA 5-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-20 plug to right-angle C-19 connector - North America Power Cord
North America Power Cords
NEMA 5-20P              IEC 60320 C-19
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
80551-RA 20A 125V AC Right-Angle
C-19 Connector
20 Amp, 12/3 AWG
2.5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-19 Connector
20 Amp - NEMA 5-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 5-20 plug to left-angle C-19 connector - North America Power Cord
North America Power Cords
NEMA 5-20P              IEC 60320 C-19
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
80551-LA 20A 125V AC Left-Angle
C-19 Connector
20 Amp, 12/3 AWG
2.5 m

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
20 Amp - NEMA 5-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America Power Cord - North America NEMA 5-20 plug to Unterminated End
North America Power Cords
NEMA 5-20P              Unterminated
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
80560 20A 125V AC Straight plug
20 Amp, 12/3 AWG
2.5 m

North America NEMA 5-20 Hospital Grade Power Cords NEMA 5-20 Hospital Grade Power Cords - AC Cables North America NEMA 5-20 Hospital Grade Power Cords

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
20 Amp - NEMA 5-20, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade NEMA 5-20 plug to straight C-20 connector - North America Hospital Grade Power Cord
North America Power Cords
NEMA 5-20P       Hospital Grade       IEC 60320 C-19
Hospital Grade Power Cords with C-20 Connector,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
82525 Hospital Grade
20A 125V AC
12/3 AWG Cordage
Black Plug & Connector,
Black Cordage
10 ft

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
20 Amp - NEMA 5-20, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade Power Cord - North America Hospital Grade NEMA 5-20 plug to Unterminated End
North America Power Cords
NEMA 5-20P       Hospital Grade       Unterminated
Hospital Grade Power Cords,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
82530 Hospital Grade
20A 125V AC
12/3 AWG Cordage
Black Plug,
Black Cordage
10 ft

North America NEMA L5-20 Locking Power Cords NEMA L5-20 Locking Power Cords - AC Cables North America NEMA L5-20 Locking Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
15 Amp - NEMA L5-20, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L5-20 Locking plug to straight C-13 connector - North America Power Cord
North America Power Cords
NEMA L5-20P       Locking       IEC 60320 C-13
Locking NEMA L5-20 Power Cords with C-13 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
92900 15A 125V AC
Locking Plug
Straight
C-13 Connector
2.5 m
92900-LK 15A 125V AC
Locking Plug
"Locking" Straight
C-13 Connector
2.44 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
20 Amp - NEMA L5-20, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L5-20 Locking plug to straight C-19 connector - North America Power Cord
North America Power Cords
NEMA L5-20P       Locking       IEC 60320 C-19
Locking NEMA L5-20 Power Cords with C-19 Connector,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
90900 20A 125V AC
Locking Plug
Straight
C-19 Connector
2.5 m
90900-LK 20A 125V AC
Locking Plug
"Locking" Straight
C-19 Connector
2.44 m

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
20 Amp - NEMA L5-20, Locking
~ Click Part Number for approvals, specifications and print. ~

North America Locking Power Cords - North America NEMA L5-20 Locking plug to Unterminated End
North America Power Cords
NEMA L5-20P       Locking       Unterminated
Locking NEMA L5-20 Power Supply Cord Set,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
94920 20A 125V AC Straight
Locking Plug
2.5 m

L5-30 Power Cords - AC Cables
Locking

North America NEMA L5-30 Locking Power Cords

Specification Data: North America Power Cords, AC Cables

Plug StandardNEMA L5-30 Locking PlugNorth America Power Cords and AC Cables
Connector StandardsStripped Wire, Opened End, Unterminated
Cordage StandardsSJTO, SJT, SJTOW
Conductor Size / Rating10 AWG @ 30 Ampere
MaterialPVC, Jacket Color Black, Temperature 105C
Conductor Color CodeBlack, White, Green (3 wire)
Jacket O.D. (Approx.)10 AWG = .58
Substances ComplianceREACH, RoHS Compliant

Power Cord Notes: North America power cords are black as standard color. North America power cords in white or gray are special order. Custom length and shielded North America AC power cables available. Terminated, custom stripping, hanked North America cords available. IEC 60320 C-15 120C connector available on some North America AC power cords.

North America NEMA L5-30 Locking Power Cords NEMA L5-30 Locking Power Cords - AC Cables North America NEMA L5-30 Locking Power Cord

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
30 Amp - NEMA L5-30, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L5-30 Locking Power Cords - North America plug to Unterminated End
North America Power Cords
NEMA L5-30P       Locking       Unterminated
Locking NEMA L5-30 Power Supply Cord Set,
Cordage - 10/3 AWG - 105 C
Part No.Rating DescriptionLength
94950 30A 125V AC Straight
Locking Plug
4.6 m

NEMA 6-15, L6-15 Power Cords - AC Cables
Straight Blade, Hospital Grade and Locking

North America NEMA 6-15 Straight Blade Power Cords North America NEMA 6-15 Hospital Grade Power Cords North America NEMA L6-15 Locking Power Cords

Specification Data: North America Power Cords, AC Cables

Plug StandardNEMA 6-15 Plug, NEMA 6-15 Hospital Grade Plug, NEMA L6-15 Locking PlugNorth America Power Cords and AC Cables
Connector StandardsIEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsSJTO, SJT, SJTOW, SVT, SPT
Conductor Size / Rating14 AWG @ 15 Ampere, 16 AWG @ 13 Ampere, 18 AWG @ 10 Ampere
MaterialPVC, Jacket Color Black, Temperature 60C & 105C
Conductor Color CodeBlack, White, Green (3 wire)
Jacket O.D. (Approx.)14 AWG = .37, 16 AWG = .34, 18 AWG = .31
Substances ComplianceREACH, RoHS Compliant

Power Cord Notes: North America power cords are black as standard color. North America power cords in white or gray are special order. Custom length and shielded North America AC power cables available. Terminated, custom stripping, hanked North America cords available. IEC 60320 C-15 120C connector available on some North America AC power cords.

North America NEMA 6-15 Straight Blade Power Cords NEMA 6-15 Straight Blade Power Cords - AC Cables North America NEMA 6-15 Straight Blade Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
15 Amp - NEMA 6-15, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-15 plug to straight C-13 connector - North America Power Cord
North America Power Cords
NEMA 6-15P              IEC 60320 C-13
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
81300 15A 250V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
2.5 m
81300-LK 15A 250V AC "Locking" Straight
C-13 Connector
15 Amp, 14/3 AWG
2.44 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-13 Connector
15 Amp - NEMA 6-15, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-15 plug to right-angle C-13 connector - North America Power Cord
North America Power Cords
NEMA 6-15P              IEC 60320 C-13
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
81300-RA 15A 250V AC Right-Angle
C-13 Connector
15 Amp, 14/3 AWG
2.5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-13 Connector
15 Amp - NEMA 6-15, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-15 plug to left-angle C-13 connector - North America Power Cord
North America Power Cords
NEMA 6-15P              IEC 60320 C-13
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
81300-LA 15A 250V AC Left-Angle
C-13 Connector
15 Amp, 14/3 AWG
2.5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
15 Amp - NEMA 6-15, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-15 plug to straight C-19 connector - North America Power Cord
North America Power Cords
NEMA 6-15P              IEC 60320 C-19
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
80500 15A 250V AC Straight
C-19 Connector
15 Amp, 14/3 AWG
2.5 m
80500-LK 15A 250V AC "Locking" Straight
C-19 Connector
15 Amp, 14/3 AWG
2.44 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-19 Connector
15 Amp - NEMA 6-15, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-15 plug to right-angle C-19 connector - North America Power Cord
North America Power Cords
NEMA 6-15P              IEC 60320 C-19
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
80500-RA 15A 250V AC Right-Angle
C-19 Connector
15 Amp, 14/3 AWG
2.5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-19 Connector
15 Amp - NEMA 6-15, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-15 plug to left-angle C-19 connector - North America Power Cord
North America Power Cords
NEMA 6-15P              IEC 60320 C-19
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
80500-LA 15A 250V AC Left-Angle
C-19 Connector
15 Amp, 14/3 AWG
2.5 m

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
10 Amp, 13 Amp, 15 Amp - NEMA 6-15, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America Power Cord - North America NEMA 6-15 plug to Unterminated End
North America Power Cords
NEMA 6-15P              Unterminated
Cordage - 18/3 AWG, 16/3 AWG, 14/3 AWG - 105 C
Part No.Rating DescriptionLength
81340 10A 250V AC Straight plug
10 Amp, 18/3 AWG
2.5 m
81350 13A 250V AC Straight plug
13 Amp, 16/3 AWG
2.5 m
81360 15A 250V AC Straight plug
15 Amp, 14/3 AWG
2.5 m

North America NEMA 6-15 Hospital Grade Power Cords NEMA 6-15 Hospital Grade Power Cords - AC Cables North America NEMA 6-15 Hospital Grade Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
15 Amp - NEMA 6-15, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade NEMA 6-15 plug to straight C-13 connector - North America Hospital Grade Power Cord
North America Power Cords
NEMA 6-15P       Hospital Grade       IEC 60320 C-13
Hospital Grade Power Cords with C-13 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
82510 Hospital Grade
15A 250V AC
14/3 AWG Cordage
Clear Plug & Connector,
Gray Cordage
10 ft

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
15 Amp - NEMA 6-15, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade NEMA 6-15 plug to straight C-19 connector - North America Hospital Grade Power Cord
North America Power Cords
NEMA 6-15P       Hospital Grade       IEC 60320 C-19
Hospital Grade Power Cords with C-19 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
82515 Hospital Grade
15A 250V AC
14/3 AWG Cordage
Clear Plug & Connector,
Gray Cordage
10 ft

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
15 Amp - NEMA 6-15, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade Power Cord - North America Hospital Grade NEMA 6-15 plug to Unterminated End
North America Power Cords
NEMA 6-15P       Hospital Grade       Unterminated
Hospital Grade Power Cords,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
82520 Hospital Grade
15A 250V AC
14/3 AWG Cordage
Clear Plug,
Gray Cordage
10 ft

North America NEMA Locking L6-15 Power Cords NEMA L6-15 Locking Power Cords - AC Cables North America NEMA Locking L6-15 Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
15 Amp - NEMA L6-15, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L6-15 Locking plug to straight C-13 connector - North America Power Cord
North America Power Cords
NEMA L6-15P       Locking       IEC 60320 C-13
Locking NEMA L6-15 Power Cords with C-13 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
91915 15A 250V AC
Locking Plug
Straight
C-13 Connector
2.5 m
91915-LK 15A 250V AC
Locking Plug
"Locking" Straight
C-13 Connector
2.44 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
15 Amp - NEMA L6-15, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L6-15 Locking plug to straight C-19 connector - North America Power Cord
North America Power Cords
NEMA L6-15P       Locking       IEC 60320 C-19
Locking NEMA L6-15 Power Cords with C-19 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
90850 15A 250V AC
Locking Plug
Straight
C-19 Connector
2.5 m
90850-LK 15A 250V AC
Locking Plug
"Locking" Straight
C-19 Connector
2.44 m

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
15 Amp - NEMA L6-15, Locking
~ Click Part Number for approvals, specifications and print. ~

North America Locking Power Cords - North America NEMA L6-15 Locking plug to Unterminated End
North America Power Cords
NEMA L6-15P       Locking       Unterminated
Locking NEMA L6-15 Power Supply Cord Set,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
91925 15A 250V AC Straight
Locking Plug
2.5 m

NEMA 6-20, L6-20 Power Cords - AC Cables
Straight Blade, Hospital Grade and Locking

North America NEMA 6-20 Straight Blade Power Cords North America NEMA 6-20 Hospital Grade Power Cords North America NEMA L6-20 Locking Power Cords

Specification Data: North America Power Cords, AC Cables

Plug StandardNEMA 6-20 Plug, NEMA 6-20 Hospital Grade Plug, NEMA L6-20 Locking PlugNorth America Power Cords and AC Cables
Connector StandardsIEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsSJTO, SJT, SJTOW, SVT, SPT
Conductor Size / Rating12 AWG @ 20 Ampere, 14 AWG @ 15 Ampere
MaterialPVC, Jacket Color Black, Temperature 60C & 105C
Conductor Color CodeBlack, White, Green (3 wire)
Jacket O.D. (Approx.)12 AWG = .44, 14 AWG = .37
Substances ComplianceREACH, RoHS Compliant

Power Cord Notes: North America power cords are black as standard color. North America power cords in white or gray are special order. Custom length and shielded North America AC power cables available. Terminated, custom stripping, hanked North America cords available. IEC 60320 C-15 120C connector available on some North America AC power cords.

North America NEMA 6-20 Straight Blade Power Cords NEMA 6-20 Straight Blade Power Cords - AC Cables North America NEMA 6-20 Straight Blade Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
15 Amp - NEMA 6-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-20 plug to straight C-13 connector - North America Power Cord
North America Power Cords
NEMA 6-20P              IEC 60320 C-13
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
80615 15A 250V AC Straight
C-13 Connector
15 Amp, 14/3 AWG
2.5 m
80615-LK 15A 250V AC "Locking" Straight
C-13 Connector
15 Amp, 14/3 AWG
2.44 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
20 Amp - NEMA 6-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-20 plug to straight C-19 connector - North America Power Cord
North America Power Cords
NEMA 6-20P              IEC 60320 C-19
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
80601 20A 250V AC Straight
C-19 Connector
20 Amp, 12/3 AWG
2.5 m
80601-LK 20A 250V AC "Locking" Straight
C-19 Connector
20 Amp, 12/3 AWG
2.44 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-19 Connector
20 Amp - NEMA 6-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-20 plug to right-angle C-19 connector - North America Power Cord
North America Power Cords
NEMA 6-20P              IEC 60320 C-19
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
80601-RA 20A 250V AC Right-Angle
C-19 Connector
20 Amp, 12/3 AWG
2.5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-19 Connector
20 Amp - NEMA 6-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America NEMA 6-20 plug to left-angle C-19 connector - North America Power Cord
North America Power Cords
NEMA 6-20P              IEC 60320 C-19
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
80601-LA 20A 250V AC Left-Angle
C-19 Connector
20 Amp, 12/3 AWG
2.5 m

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
20 Amp - NEMA 6-20, Straight Blade
~ Click Part Number for approvals, specifications and print. ~

North America Power Cord - North America NEMA 6-20 plug to Unterminated End
North America Power Cords
NEMA 6-20P              Unterminated
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
80660 20A 250V AC Straight plug
20 Amp, 12/3 AWG
2.5 m

North America NEMA 6-20 Hospital Grade Power Cords NEMA 6-20 Hospital Grade Power Cords - AC Cables North America NEMA 6-20 Hospital Grade Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
20 Amp - NEMA 6-20, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade NEMA 6-20 plug to straight C-19 connector - North America Hospital Grade Power Cord
North America Power Cords
NEMA 6-20P       Hospital Grade       IEC 60320 C-19
Hospital Grade Power Cords with C-19 Connector,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
82535 Hospital Grade
20A 250V AC
12/3 AWG Cordage
Black Plug & Connector,
Black Cordage
10 ft

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
20 Amp - NEMA 6-20, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

North America Hospital Grade Power Cord - North America Hospital Grade NEMA 6-20 plug to Unterminated End
North America Power Cords
NEMA 6-20P       Hospital Grade       Unterminated
Hospital Grade Power Cords,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
82540 Hospital Grade
20A 250V AC
12/3 AWG Cordage
Black Plug,
Black Cordage
10 ft

North America NEMA L6-20 Locking Power Cords NEMA L6-20 Locking Power Cords - AC Cables North America NEMA L6-20 Locking Power Cord

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
15 Amp - NEMA L6-20, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L6-20 Locking plug to straight C-13 connector - North America Power Cord
North America Power Cords
NEMA L6-20P       Locking       IEC 60320 C-13
Locking NEMA L6-20 Power Cords with C-13 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
93900 15A 250V AC
Locking Plug
Straight
C-13 Connector
2.5 m
93900-LK 15A 250V AC
Locking Plug
"Locking" Straight
C-13 Connector
2.44 m
93900-LK6 15A 250V AC
Locking Plug
"Locking" Straight
C-13 Connector
6 ft
93900-LK12 15A 250V AC
Locking Plug
"Locking" Straight
C-13 Connector
12 ft

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
20 Amp - NEMA L6-20, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L6-20 Locking plug to straight C-19 connector - North America Power Cord
North America Power Cords
NEMA L6-20P       Locking       IEC 60320 C-19
Locking NEMA L6-20 Power Cords with C-19 Connector,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
90950 20A 250V AC
Locking Plug
Straight
C-19 Connector
2.5 m
90950X5M 20A 250V AC
Locking Plug
Straight
C-19 Connector
5 m
90950-LK 20A 250V AC
Locking Plug
"Locking" Straight
C-19 Connector
2.44 m
90950-LK6 20A 250V AC
Locking Plug
"Locking" Straight
C-19 Connector
6 ft
90950-LK12 20A 250V AC
Locking Plug
"Locking" Straight
C-19 Connector
12 ft
90950X5M-LK 20A 250V AC
Locking Plug
"Locking" Straight
C-19 Connector
5 m

North America Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-19 Connector
20 Amp - NEMA L6-20, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L6-20 Locking plug to right-angle C-19 connector - North America Power Cord
North America Power Cords
NEMA L6-20P       Locking       IEC 60320 C-19
Locking NEMA L6-20 Power Cords with C-19 Connector,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
90950X5MRA 20A 250V AC
Locking Plug
Right-Angle
C-19 Connector
5 m

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
20 Amp - NEMA L6-20, Locking
~ Click Part Number for approvals, specifications and print. ~

North America Locking Power Cords - North America NEMA L6-20 Locking plug to Unterminated End
North America Power Cords
NEMA L6-20P       Locking       Unterminated
Locking NEMA L6-20 Power Supply Cord Set,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
94940 20A 250V AC Straight
Locking Plug
2.5 m

L6-30 Power Cords - AC Cables
Locking

North America NEMA L6-30 Locking Power Cords

Specification Data: North America Power Cords, AC Cables

Plug StandardNEMA L6-30 Locking PlugNorth America Power Cords and AC Cables
Connector StandardsC-19, Stripped Wire, Opened End, Unterminated
Cordage StandardsSJTO, SJT, SJTOW
Conductor Size / Rating10 AWG @ 30 Ampere, 12 AWG @ 20 Ampere
MaterialPVC, Jacket Color Black, Temperature 105C
Conductor Color CodeBlack, White, Green (3 wire)
Jacket O.D. (Approx.)10 AWG = .58, 12 AWG = .44
Substances ComplianceREACH, RoHS Compliant

Power Cord Notes: North America power cords are black as standard color. North America power cords in white or gray are special order. Custom length and shielded North America AC power cables available. Terminated, custom stripping, hanked North America cords available. IEC 60320 C-15 120C connector available on some North America AC power cords.

North America NEMA L6-30 Locking Power Cords NEMA L6-30 Locking Power Cords - AC Cables North America NEMA L6-30 Locking Power Cords

North America Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
20 Amp - NEMA L6-30, Locking
~ Click Part Number for approvals, specifications and print. ~

North America NEMA L6-30 Locking plug to straight C-19 connector - North America Power Cord
North America Power Cords
NEMA L6-30P       Locking       IEC 60320 C-19
Locking NEMA L6-15 Power Cords with C-19 Connector,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
90960 20A 250V AC
Locking Plug
Straight
C-19 Connector
2.5 m
90960X12FT 20A 250V AC
Locking Plug
Straight
C-19 Connector
12 ft
90960X15FT 20A 250V AC
Locking Plug
Straight
C-19 Connector
15 ft

North America Power Cords, Power Supply Cord Sets to Unterminated Cord End
30 Amp - NEMA L6-30, Locking
~ Click Part Number for approvals, specifications and print. ~

North America Locking Power Cords - North America NEMA L6-20 Locking plug to Unterminated End
North America Power Cords
NEMA L6-30P       Locking       Unterminated
Locking NEMA L6-30 Power Supply Cord Set,
Cordage - 10/3 AWG - 105 C
Part No.Rating DescriptionLength
94960 30A 250V AC Straight
Locking Plug
4.6 m
     North America power cords and power AC cables, produced by International Configurations meet North America quality standards and comply with current RoHS and REACH requirements. International Configurations manufactures and supplies power cords and AC cables for use in North America and all other Countries throughout the world. Utilize our North America power cord links above to select and view product specification data and download power cord prints.
