India Power Cords - AC Cables

  India Power Cords and Power Supply Cord Sets
India Power Cords 15 Amp  UK2-15P, BS 546A, SANS 164-1, 15 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type M Plug

Specification Data: India Power Cords, AC Cables, Type M Plug

Plug StandardBS 546A, BS 546, SANS 164-1, SABS 164-1, IA16A3 Type M PlugIndia Power Cords and AC Cables
Connector StandardsIEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsH05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR)
Conductor Size / Rating0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere
MaterialPVC, Jacket Color Black, Temperature 70C
Conductor Color CodeBrown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire)
Jacket O.D. (Approx.)6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm
Substances ComplianceREACH, RoHS Compliant

Power Cord Notes: India Type M power cords are black as standard color. India power cords in white or gray are special order. Custom length and shielded India AC power cables available. Terminated, custom stripping, hanked India cords available. IEC 60320 C-15 120C connector available on some India AC power cords.

India Power Cords - AC Cables

India Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
87101 10A 250V AC Straight C-13 connector2.5 m
87101X10FT 10A 250V ACStraight C-13 connector 10 ft
87101-LK 10A 250V AC "Locking" Straight
C-13 connector
2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark

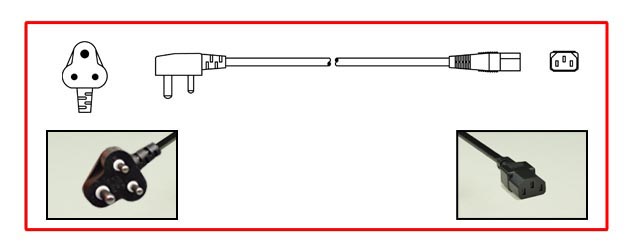

India plug to straight C-13 connector - India Power Cord
India Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-13

India Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-13 Connector
BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
87101-LA 10A 250V ACLeft-angle C-13 connector2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark
India plug to left-angle C-13 connector - India Power Cord
India Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-13

India Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-13 Connector
BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
87101-RA 10A 250V ACRight-angle C-13 connector2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark
India plug to right-angle C-13 connector - India Power Cord
India Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-13

India Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
80251 15A 250V ACStraight C-19 connector2.5 m
80251-LK 15A 250V AC"Locking" Straight
C-19 connector
2.5 m
Cordage - H05VV-F3G 1.5mm - CE Mark
India plug to straight C-19 connector - India Power Cord
India Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-19

India Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-19 Connector
BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
80251-LA 15A 250V ACLeft-angle C-19 connector2.5 m
Cordage - H05VV-F3G 1.5mm - CE Mark
India plug to left-angle C-19 connector - India Power Cord
India Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-19

India Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-19 Connector
BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
80251-RA 15A 250V ACRight-angle C-19 connector2.5 m
Cordage - H05VV-F3G 1.5mm - CE Mark
India plug to right-angle C-19 connector - India Power Cord
India Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-19

India Power Cords, Detachable Cord Sets to IEC 60320 Straight C-5 Connector
BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
87950 2.5A 250V ACStraight C-5 connector1.8 m
Cordage - H03VV-F3 0.75mm - CE Mark

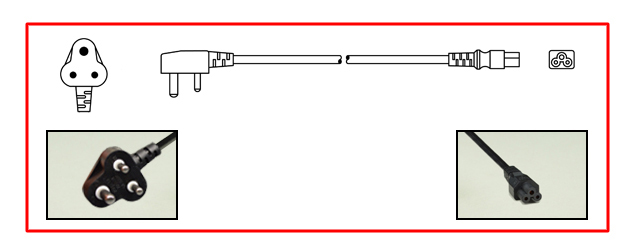

India plug to straight C-5 connector - India Power Cord
India Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-5

India Power Cords, Detachable Cord Sets to IEC 60320 Straight C-7 Connector
BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
86900 2.5A 250V ACStraight C-7 connector1.8 m
Cordage - H03VV-H2 0.75mm - CE Mark

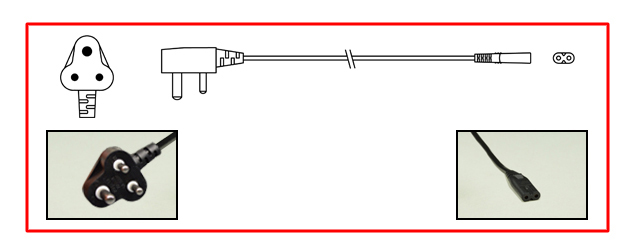

India plug to straight C-7 connector - India Power Cord
India Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-7

India Power Cords, Power Supply Cord Sets to Unterminated Cord End
BS 546A, SANS 164-1, Type M Plug
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescription / ConductorsLength
870106A 250V ACAngle plug/0.75 mm2.5 m
8704010A 250V ACAngle plug/1.0 mm2.5 m
87040X10FT10A 250V ACAngle plug/1.0 mm10 ft
8707015A 250V ACAngle plug/1.5 mm2.5 m
87070X10FT16A 250V ACAngle plug/1.5 mm10 ft
Cordage - H05VV-F3G - CE Mark

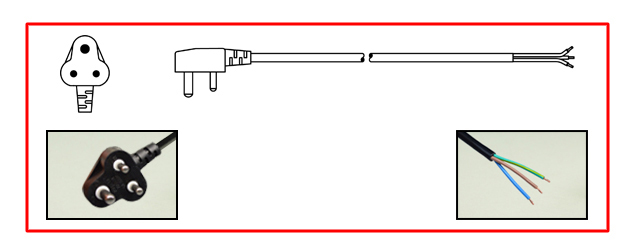

India Power Cord - India plug to Unterminated End
                 India Power Cords, Type M Plug
  UK2-15P       "CE" Mark       Unterminated
     India power cords and power AC cables, produced by International Configurations meet India quality standards and comply with current RoHS and REACH requirements. International Configurations manufactures and supplies power cords and AC cables for use in India and all other Countries throughout the world. Utilize our India power cord links above to select and view product specification data and download power cord prints.
