| Plug Standard | BS 546A, BS 546, SANS 164-1, SABS 164-1, IA16A3 Type M Plug |  |
|---|
| Connector Standards | IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated |
|---|
| Cordage Standards | H05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR) |
|---|
| Conductor Size / Rating | 0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere |
|---|
| Material | PVC, Jacket Color Black, Temperature 70C |
|---|
| Conductor Color Code | Brown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire) |
|---|
| Jacket O.D. (Approx.) | 6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm |
|---|
| Substances Compliance | REACH, RoHS Compliant |
|---|
|
| Power Cord Notes: |

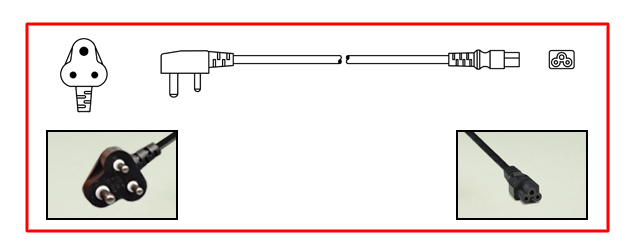

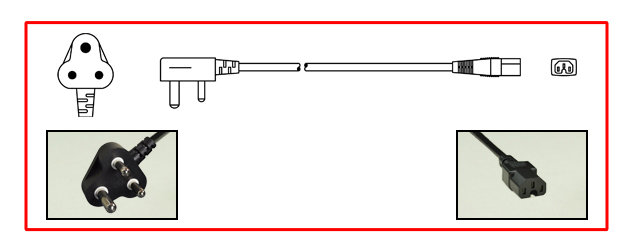

Sri Lanka Type M power cords are black as standard color. Sri Lanka power cords in white or gray are special order. Custom length and shielded Sri Lanka AC power cables available. Terminated, custom stripping, hanked Sri Lanka cords available. IEC 60320 C-15 120C connector available on some Sri Lanka AC power cords. |
|
Sri Lanka Power Cords and Power Supply Cord Sets
UK2-15P, BS 546A, SANS 164-1, 15 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type M Plug
