South Africa Power Cords - AC Cables

South Africa Power Cords 15 Amp  UK2-15P, BS 546A, SANS 164-1, 15 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type M Plug

South Africa Power Cords 15 Amp  UK3-5P, BS 546A, SANS 164-3, 5 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type D Plug

South Africa Power Cords 15 Amp  SA1-16P, SANS 164-2, 16 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type N Plug

South Africa Type M Power Cords, Power Supply Cords Used in South Africa

Specification Data: South Africa Type M Power Cords, AC Cables

Plug StandardBS 546A, BS 546, SANS 164-1, SABS 164-1, IA16A3 Type M PlugSouth Africa Power Cords and AC Cables
Connector StandardsIEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsH05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR)
Conductor Size / Rating0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere
MaterialPVC, Jacket Color Black, Temperature 70C
Conductor Color CodeBrown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire)
Jacket O.D. (Approx.)6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm
Substances ComplianceREACH, RoHS Compliant
Power Cord Notes: South Africa Type M power cords are black as standard color. South Africa power cords in white or gray are special order. Custom length and shielded South Africa AC power cables available. Terminated, custom stripping, hanked South Africa cords available. IEC 60320 C-15 120C connector available on some South Africa AC power cords.

South Africa Power Cords - AC Cables

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
SABS, BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
87101 10A 250V AC Straight C-13 connector2.5 m
87101X10FT 10A 250V ACStraight C-13 connector 10 ft
87101-LK 10A 250V AC "Locking" Straight
C-13 connector		2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark
South Africa plug to straight C-13 connector - South Africa Power Cord
South Africa Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-13

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-13 Connector
SABS, BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
87101-LA 10A 250V ACLeft-angle C-13 connector2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark
South Africa plug to left-angle C-13 connector - South Africa Power Cord
South Africa Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-13

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-13 Connector
SABS, BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
87101-RA 10A 250V ACRight-angle C-13 connector2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark
South Africa plug to right-angle C-13 connector - South Africa Power Cord
South Africa Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-13

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Straight C-15 Connector
SABS, BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
87101-C15 10A 250V AC Straight
C-15 Connector		2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark
South Africa plug to straight C-15 connector - South Africa Power Cord
South Africa Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-15

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
SABS, BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
80251 15A 250V ACStraight C-19 connector2.5 m
80251-LK 15A 250V AC"Locking" Straight
C-19 connector		2.5 m
Cordage - H05VV-F3G 1.5mm - CE Mark
South Africa plug to straight C-19 connector - South Africa Power Cord
South Africa Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-19

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-19 Connector
SABS, BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
80251-LA 15A 250V ACLeft-angle C-19 connector2.5 m
Cordage - H05VV-F3G 1.5mm - CE Mark
South Africa plug to left-angle C-19 connector - South Africa Power Cord
South Africa Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-19

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-19 Connector
SABS, BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
80251-RA 15A 250V ACRight-angle C-19 connector2.5 m
Cordage - H05VV-F3G 1.5mm - CE Mark
South Africa plug to right-angle C-19 connector - South Africa Power Cord
South Africa Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-19

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Straight C-5 Connector
SABS, BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
87950 2.5A 250V ACStraight C-5 connector1.8 m
Cordage - H03VV-F3 0.75mm - CE Mark
South Africa plug to straight C-5 connector - South Africa Power Cord
South Africa Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-5

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Straight C-7 Connector
SABS, BS 546A, SANS 164-1, Type M Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
86900 2.5A 250V ACStraight C-7 connector1.8 m
Cordage - H03VV-H2 0.75mm - CE Mark
South Africa plug to straight C-7 connector - South Africa Power Cord
South Africa Power Cords, Type M Plug
UK2-15P       "CE" Mark       IEC 60320 C-7

South Africa Power Cords, Power Supply Cord Sets to Unterminated Cord End
SABS, BS 546A, SANS 164-1, Type M Plug
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescription / ConductorsLength
870106A 250V ACAngle plug/0.75 mm2.5 m
8704010A 250V ACAngle plug/1.0 mm2.5 m
87040X10FT10A 250V ACAngle plug/1.0 mm10 ft
8707015A 250V ACAngle plug/1.5 mm2.5 m
87070X10FT15A 250V ACAngle plug/1.5 mm10 ft
Cordage - H05VV-F3G - CE Mark
South Africa Power Cord - South Africa plug to Unterminated End
                 South Africa Power Cords, Type M Plug
  UK2-15P       "CE" Mark       Unterminated

South Africa Type D Power Cords, Power Supply Cords Used in South Africa

Specification Data: South Africa Type D Power Cords, AC Cables

Plug StandardBS 546A, BS 546, SANS 164-3, SABS 164-3, IA16A3 Type D PlugSouth Africa Power Cords and AC Cables
Connector StandardsIEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsH05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR)
Conductor Size / Rating0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere
MaterialPVC, Jacket Color Black, Temperature 70C
Conductor Color CodeBrown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire)
Jacket O.D. (Approx.)6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm
Substances ComplianceREACH, RoHS Compliant
Power Cord Notes: South Africa Type D power cords are black as standard color. South Africa power cords in white or gray are special order. Custom length and shielded South Africa AC power cables available. Terminated, custom stripping, hanked South Africa cords available. IEC 60320 C-15 120C connector available on some South Africa AC power cords.

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
SABS, BS 546A, SANS 164-3, Type D Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
89905 5A 250V AC Straight C-13 Connector2.5 m
Cordage - H05VV-F3G - CE Mark
South Africa plug to straight C-13 connector - South Africa Power Cord
South Africa Power Cords
  UK3-5P       "CE" Mark       IEC 60320 C-13

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Straight C-5 Connector
SABS, BS 546A, SANS 164-3, Type D Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
89910 2.5A 250V AC Straight C-5 Connector1.8 m
Cordage - H05VV-F3G - CE Mark
South Africa plug to straight C-5 connector - South Africa Power Cord
South Africa Power Cords
  UK3-5P       "CE" Mark       IEC 60320 C-5

South Africa Power Cords, Detachable Cord Sets to IEC 60320 Straight C-7 Connector
SABS, BS 546A, SANS 164-3, Type D Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
89907 2.5A 250V AC Straight C-7 Connector1.8 m
Cordage - H03VVH2-F3G - CE Mark
South Africa plug to straight C-13 connector - South Africa Power Cord
South Africa Power Cords
  UK3-5P       "CE" Mark       IEC 60320 C-7

South Africa Power Cords, Power Supply Cord Sets to Unterminated Cord Ends
SABS, BS 546A, SANS 164-3, Type D Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
89940 5A 250V AC Angled plug/1.0mm2.5 m
Cordage - H05VV-F3G - CE Mark
South Africa plug to Unterminated end - South Africa Power Cord
South Africa Power Cords
  UK3-5P       "CE" Mark       Unterminated

South Africa ZA Type N Power Cords, Power Supply Cords Used in South Africa

Specification Data: South Africa ZA Type N Power Cords, AC Cables

Plug StandardSANS 164-2, SABS 164-2 Type N PlugSouth Africa Power Cords and AC Cables
Connector StandardsIEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsH05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR)
Conductor Size / Rating0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere
MaterialPVC, Jacket Color Black, Temperature 70C
Conductor Color CodeBrown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire)
Jacket O.D. (Approx.)6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm
Substances ComplianceREACH, RoHS Compliant
Power Cord Notes: South Africa ZA Type N power cords are black as standard color. South Africa power cords in white or gray are special order. Custom length and shielded South Africa AC power cables available. Terminated, custom stripping, hanked South Africa cords available. IEC 60320 C-15 120C connector available on some South Africa AC power cords.

South Africa ZA Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
SABS, SANS 164-2, Type N Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength

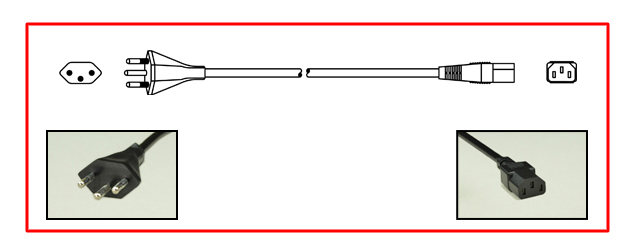

89813 10A 250V AC Straight C-13 Connector2.5 m
89813-LKS 10A 250V AC "Locking" Straight
C-13 Connector		2.5 m
Cordage - H05VV-F3G - CE Mark
South Africa plug to straight C-13 connector - South Africa Power Cord
South Africa ZA Power Cords
  SA1-16P       "CE" Mark       IEC 60320 C-13

South Africa ZA Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
SABS, SANS 164-2, Type N Angle Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength

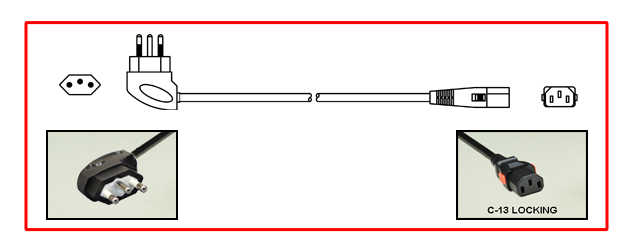

89813-LK 10A 250V AC "Locking" Straight
C-13 Connector		2.5 m
Cordage - H05VV-F3G - CE Mark
South Africa plug to straight C-13 connector - South Africa Power Cord
South Africa ZA Power Cords
  SA1-16P       "CE" Mark       IEC 60320 C-13

South Africa ZA Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
SABS, SANS 164-2, Type N Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength

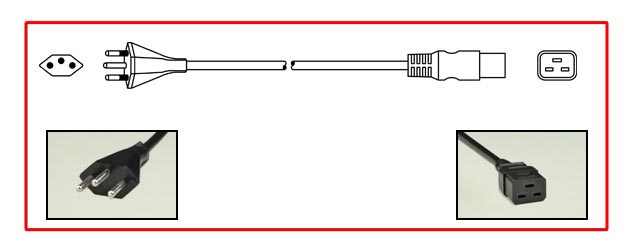

89819 16A 250V AC Straight C-19 Connector2.5 m
89819-LKS 16A 250V AC "Locking" Straight
C-19 Connector		2.5 m
Cordage - H05VV-F3G - CE Mark
South Africa plug to straight C-19 connector - South Africa Power Cord
South Africa ZA Power Cords
  SA1-16P       "CE" Mark       IEC 60320 C-19

South Africa ZA Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
SABS, SANS 164-2, Type N Angle Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength

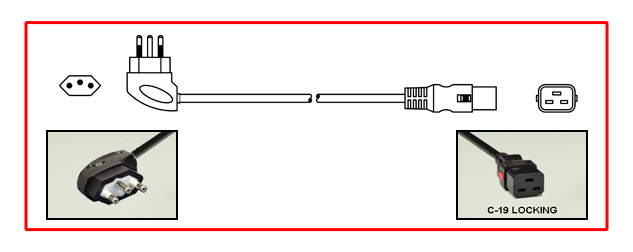

89819-LK 16A 250V AC "Locking" Straight
C-19 Connector		2.5 m
Cordage - H05VV-F3G - CE Mark
South Africa plug to straight C-19 connector - South Africa Power Cord
South Africa ZA Power Cords
  SA1-16P       "CE" Mark       IEC 60320 C-19

South Africa ZA Power Cords, Detachable Cord Sets to IEC 60320 Straight C-5 Connector
SABS, SANS 164-2, Type N Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength

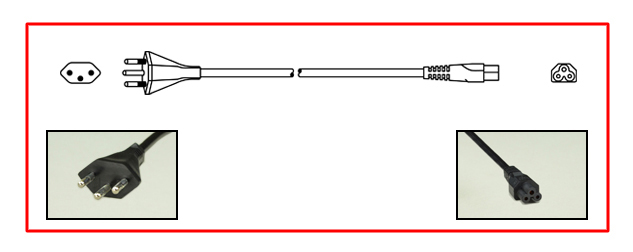

89805 2.5A 250V AC Straight C-5 Connector1.8 m
Cordage - H05VV-F3G - CE Mark
South Africa plug to straight C-5 connector - South Africa Power Cord
South Africa ZA Power Cords
  SA1-16P       "CE" Mark       IEC 60320 C-5

South Africa ZA Power Cords, Detachable Cord Sets to IEC 60320 Straight C-7 Connector
SABS, SANS 164-5, (Non-Polarized) South Africa Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
89807 2.5A 250V AC Straight C-7 Connector1.8 m
Cordage - H03VV-H2-F3G - CE Mark

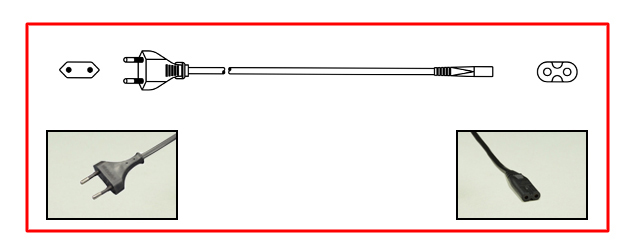

South Africa plug to straight C-7 connector - South Africa Power Cord
South Africa ZA Power Cords
         "CE" Mark       IEC 60320 C-7

South Africa ZA Power Cords, Power Supply Cord Sets to Unterminated Cord End
SABS, SANS 164-2, Type N Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating Description / ConductorsLength
89840 10A 250V AC Straight plug/1.0mm2.5 m
89870 16A 250V AC Straight plug/1.5mm2.5 m
Cordage - H05VV-F3G - CE Mark

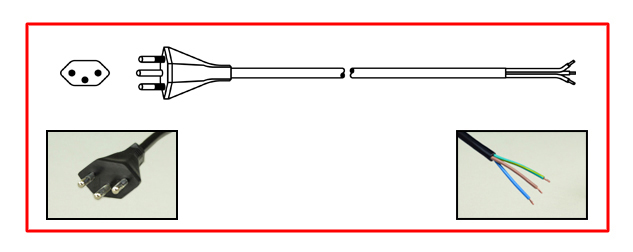

South Africa plug to Unterminated Cord Ends - South Africa Power Cord
South Africa ZA Power Cords
  SA1-16P       "CE" Mark       Unterminated
     South Africa power cords and power AC cables, produced by International Configurations meet South Africa quality standards and comply with current RoHS and REACH requirements. International Configurations manufactures and supplies power cords and AC cables for use in South Africa and all other Countries throughout the world. Utilize our South Africa power cord links above to select and view product specification data and download power cord prints.
