Greenland Power Cords - AC Cables

  Greenland Power Cords and Power Supply Cord Sets
Greenland Power Cords 13 Amp  DE1-13P, AFSNIT 107-2-D1, SRAF 1962/DB 16/87, 13 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type K Plug
Greenland Power Cords 13 Amp Hospital Grade  DE1-13P, AFSNIT 107-2-D1, Hospital Grade, 13 Amp 250 Volt AC, 2 Pole 3 Wire Grounding
Greenland Power Cords 2.5 Amp  CEE 7/16 (Non-Polarized) Europlug, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding

Specification Data: Greenland Power Cords, AC Cables, Type K Plug

Plug StandardAFSNIT 107-2-D1, SRAF 1962/DB 16/87 Type K Plug, CEE 7/16 (Non-Polarized) PlugGreenland Power Cords and AC Cables
Connector StandardsIEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsH05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR)
Conductor Size / Rating0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere
MaterialPVC, Jacket Color Black, Temperature 70C
Conductor Color CodeBrown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire)
Jacket O.D. (Approx.)6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm
Substances ComplianceREACH, RoHS Compliant

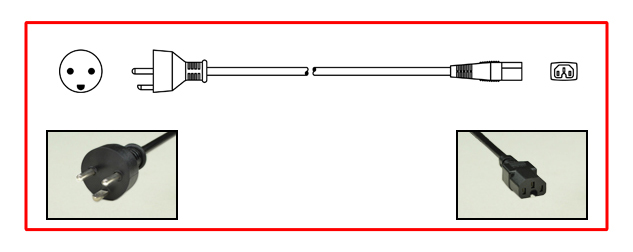

Power Cord Notes: Greenland Type K power cords are black as standard color. Greenland power cords in white or gray are special order. Custom length and shielded Greenland AC power cables available. Terminated, custom stripping, hanked Greenland cords available. IEC 60320 C-15 120C connector available on some Greenland AC power cords.

Greenland Power Cords - AC Cables

Greenland Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
AFSNIT 107-2-D1, SRAF 1962/DB 16/87 Type K Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
89071 13A 250V AC Straight C-13 connector2.5 m
89071X10FT 13A 250V ACStraight C-13 connector 10 ft
89071-LK 13A 250V AC "Locking" Straight
C-13 connector
2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark
Greenland plug to straight C-13 connector - Greenland Power Cord
Greenland Power Cords, Type K Plug
DE1-13P       "CE" Mark       IEC 60320 C-13

Greenland Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-13 Connector
AFSNIT 107-2-D1, SRAF 1962/DB 16/87 Type K Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
89071-LA 13A 250V ACLeft-angle C-13 connector2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark
Greenland plug to left-angle C-13 connector - Greenland Power Cord
Greenland Power Cords, Type K Plug
DE1-13P       "CE" Mark       IEC 60320 C-13

Greenland Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-13 Connector
AFSNIT 107-2-D1, SRAF 1962/DB 16/87 Type K Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
89071-RA 13A 250V ACRight-angle C-13 connector2.5 m
Cordage - H05VV-F3G 1.0mm - CE Mark
Greenland plug to right-angle C-13 connector - Greenland Power Cord
Greenland Power Cords, Type K Plug
DE1-13P       "CE" Mark       IEC 60320 C-13

Greenland Power Cords, Hospital Grade Detachable Cord Sets to IEC 60320 Straight C-13 Connector
AFSNIT 107-2-D1, Hospital Grade,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
89073 13A 250V ACStraight C-13 connector10 ft
Cordage - H03VV-H2 1.0mm - CE Mark
Greenland Hospital Grade plug to straight C-13 connector - Greenland Power Cord
Greenland Hospital Grade Power Cords, Type K Plug
DE1-13P       "CE" Mark       IEC 60320 C-13

Greenland Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
AFSNIT 107-2-D1, SRAF 1962/DB 16/87 Type K Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
89075 13A 250V ACStraight C-19 connector2.5 m
89075-LK 13A 250V AC"Locking" Straight
C-19 connector
2.5 m
Cordage - H05VV-F3G 1.5mm - CE Mark
Greenland plug to straight C-19 connector - Greenland Power Cord
Greenland Power Cords, Type K Plug
DE1-13P       "CE" Mark       IEC 60320 C-19

Greenland Power Cords, Detachable Cord Sets to IEC 60320 Straight C-5 Connector
AFSNIT 107-2-D1, SRAF 1962/DB 16/87 Type K Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
89950 2.5A 250V ACStraight C-5 connector1.8 m
Cordage - H03VV-F3 0.75mm - CE Mark
Greenland plug to straight C-5 connector - Greenland Power Cord
Greenland Power Cords, Type K Plug
DE1-13P       "CE" Mark       IEC 60320 C-5

Greenland Power Cords, Detachable Cord Sets to IEC 60320 Straight C-7 Connector
CEE 7/16 (Non-Polarized) Europlug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
81900 2.5A 250V ACStraight C-7 Connector1.8 m
Cordage - H03VV-H2-F2 0.75mm - CE Mark
Greenland plug to straight C-7 connector - Greenland Power Cord
Greenland Power Cords, Europlug
CEE 7/16       "CE" Mark       IEC 60320 C-7

Greenland Power Cords, Power Supply Cord Sets to Unterminated Cord End
AFSNIT 107-2-D1, SRAF 1962/DB 16/87 Type K Plug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescription / ConductorsLength
8904010A 250V ACStraight plug/1.0 mm2.5 m
89040X10FT10A 250V ACStraight plug/1.0 mm10 ft
8905013A 250V ACStraight plug/1.5 mm2.5 m
Cordage - H05VV-F3G - CE Mark
Greenland Power Cord - Greenland plug to Unterminated End
Greenland Power Cords, Type K Plug
  DE1-13P       "CE" Mark       Unterminated

Greenland Power Cords, Hospital Grade Power Supply Cord Sets to Unterminated Cord End
AFSNIT 107-2-D1, Hospital Grade,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescription / ConductorsLength
8905313A 250V ACStraight plug/1.5 mm10 ft
Cordage - H05VV-F3G - CE Mark
Greenland Power Cord - Greenland plug to Unterminated End
Greenland Power Cords, Type K Plug
  DE1-13P       "CE" Mark       Unterminated

Greenland Power Cords, Power Supply Cord Sets to Unterminated Cord End
CEE 7/16 (Non-Polarized) Europlug,
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescription / ConductorsLength
902002.5A 250V ACStraight plug/0.75 mm
H03VV-H2-F2
1.8 m
904002.5A 250V ACStraight plug/0.75 mm
H05VV-F2
1.8 m
Greenland Power Cord - Greenland plug to Unterminated End
Greenland Power Cords, Europlug
  CEE 7/16       "CE" Mark       Unterminated
     Greenland power cords and power AC cables, produced by International Configurations meet Greenland quality standards and comply with current RoHS and REACH requirements. International Configurations manufactures and supplies power cords and AC cables for use in Greenland and all other Countries throughout the world. Utilize our Greenland power cord links above to select and view product specification data and download power cord prints.
