China Power Cords - AC Cables

  China Power Cords and Power Supply Cord Sets
China Power Cords 10 Amp  CH1-10P, GB 2099.1, GB 1002, 10 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type I Plug
China Power Cords 16 Amp  CH2-16P, GB 2099.1, GB 1002, 16 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type I Plug
China Power Cords 2.5 Amp  China Non-Grounded, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding

Specification Data: China Power Cords, AC Cables, Type I Plug

Plug StandardCH1-10P, GB 2099.1-1996, GB 1002-1996, Type I Plug
CH2-16P, GB 2099.1-1996, GB 1002-1996, Type I Plug		China Power Cords and AC Cables
Connector StandardsGB 17465.1-1998, IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated
Cordage StandardsGB 5023.5-1997, RVV, RVB, CENELEC HD-21 (HAR)
Conductor Size / Rating0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere
MaterialPVC, Jacket Color Black, Temperature 70C
Conductor Color CodeBrown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire)
Jacket O.D. (Approx.)6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm
Substances ComplianceREACH, RoHS Compliant

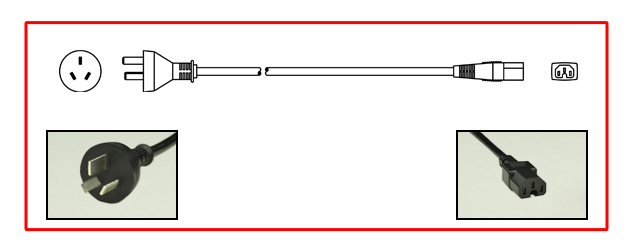

Power Cord Notes: China Type I power cords are black as standard color. China power cords in white or gray are special order. Custom length and shielded China AC power cables available. Terminated, custom stripping, hanked China cords available. IEC 60320 C-15 120C connector available on some China AC power cords.

China Power Cords - AC Cables

China Power Cords, Detachable Cord Sets to IEC 60320 Straight C-13 Connector
GB 2099.1, GB 1002, Type I Plug
~ Click Part Number for approvals, specifications and print. ~

Part No.Rating DescriptionLength
84661 10A 250V AC Straight
C-13 Connector		2.5 m
84661X3.1M 10A 250V AC Straight
C-13 Connector		3.1 m
84661-LK 10A 250V AC "Locking" Straight
C-13 Connector
Down-Angle Plug		2.5 m
Cordage - RVV 1.0mm - CE Mark
China plug to straight C-13 connector - China Power Cord
China Power Cords, Type I Plug
CH1-10P       "CE" Mark       IEC 60320 C-13

China Power Cords, Detachable Cord Sets to IEC 60320 Left-Angle C-13 Connector
GB 2099.1, GB 1002, Type I Plug
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
84661-LA 10A 250V ACLeft-Angle
C-13 Connector		2.5 m
Cordage - RVV 1.0mm - CE Mark
China plug to left-angle C-13 connector - China Power Cord
China Power Cords, Type I Plug
CH1-10P       "CE" Mark       IEC 60320 C-13

China Power Cords, Detachable Cord Sets to IEC 60320 Right-Angle C-13 Connector
GB 2099.1, GB 1002, Type I Plug
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
84661-RA 10A 250V ACRight-Angle
C-13 Connector		2.5 m
Cordage - RVV 1.0mm - CE Mark
China plug to right-angle C-13 connector - China Power Cord
China Power Cords, Type I Plug
CH1-10P       "CE" Mark       IEC 60320 C-13

China Power Cords, Detachable Cord Sets to IEC 60320 Straight C-19 Connector
GB 2099.1, GB 1002, Type I Plug
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
84671 16A 250V ACStraight
C-19 Connector		2.5 m
84671X10FT 16A 250V ACStraight
C-19 Connector,
Down-Angle Plug		10 ft
84671-LK 16A 250V AC"Locking" Straight
C-19 Connector,
Down-Angle Plug		2.5 m
Cordage - RVV 1.5mm - CE Mark
China plug to straight C-19 connector - China Power Cord
China Power Cords, Straight Type I Plug
CH2-16P       "CE" Mark       IEC 60320 C-19
China plug to straight C-19 connector - China Power Cord
China Power Cords, Down-Angle Type I Plug
CH2-16P       "CE" Mark       IEC 60320 C-19

China Power Cords, Detachable Cord Sets to IEC 60320 Straight C-5 Connector
GB 2099.1, GB 1002, Type I Plug
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
84295 2.5A 250V ACStraight
C-5 Connector		1.8 m
Cordage - RVV 0.75 mm - CE Mark
China plug to straight C-5 connector - China Power Cord
China Power Cords, Type I Plug
CH1-10P       "CE" Mark       IEC 60320 C-5

China Power Cords, Detachable Cord Sets to IEC 60320 Straight C-7 Connector
China Non-Grounded
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescriptionLength
84195-A 2.5A 250V ACStraight C-7 Connector1.8 m
Cordage - RVV 0.75mm - CE Mark
China Non-Grounded to straight C-7 connector - China Power Cord
China Power Cords
China Non-Grounded       "CE" Mark       IEC 60320 C-7

China Power Cords, Power Supply Cord Sets to Unterminated Cord End
10 Amp, GB 2099.1, GB 1002, Type I Plug
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescription / ConductorsLength
8464010A 250V ACStraight Plug
1.0 mm Cordage		2.5 m
Cordage - RVV - CE Mark
China Power Cord - China plug to Unterminated End
China Power Cords, Type I Plug
  CH1-10P       "CE" Mark       Unterminated

China Power Cords, Power Supply Cord Sets to Unterminated Cord End
16 Amp, GB 2099.1, GB 1002, Type I Plug
~ Click Part Number for approvals, specifications and print. ~

Part No.RatingDescription / ConductorsLength
8465016A 250V ACStraight Plug
1.5 mm Cordage		2.5 m
84655X10FT16A 250V ACDown-Angle Plug
1.5 mm Cordage		10 ft
Cordage - RVV - CE Mark
China Power Cord - China plug to Unterminated End
China Power Cords, Straight Type I Plug
  CH2-16P       "CE" Mark       Unterminated
China Power Cord - China plug to Unterminated End
China Power Cords, Down-Angle Type I Plug
  CH2-16P       "CE" Mark       Unterminated
     China power cords and power AC cables, produced by International Configurations meet China quality standards and comply with current RoHS and REACH requirements. International Configurations manufactures and supplies power cords and AC cables for use in China and all other Countries throughout the world. Utilize our China power cord links above to select and view product specification data and download power cord prints.
