| Plug Standard | ABNT NBR 14136 Type N Plug, NBR 6147 Plug |  |
|---|

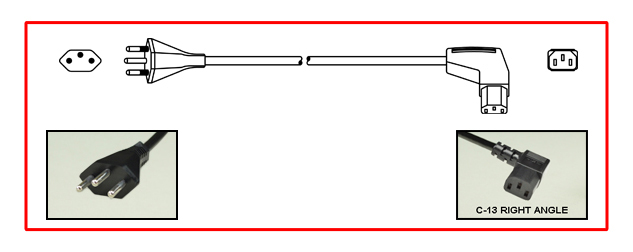

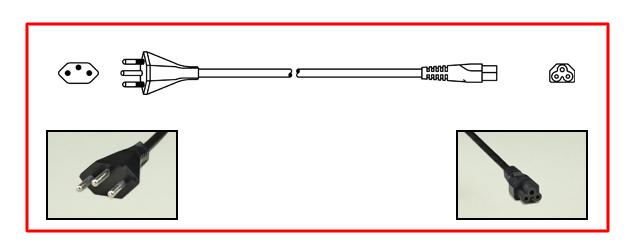

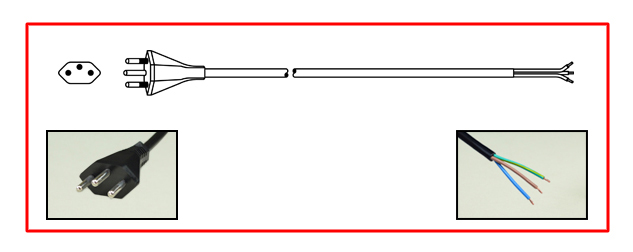

| Connector Standards | IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated |
|---|
| Cordage Standards | H05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR) |
|---|
| Conductor Size / Rating | 0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere |
|---|
| Material | PVC, Jacket Color Black, Temperature 70C |
|---|
| Conductor Color Code | Brown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire) |
|---|
| Jacket O.D. (Approx.) | 6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm |
|---|
| Substances Compliance | REACH, RoHS Compliant |
|---|
|
| Power Cord Notes: |

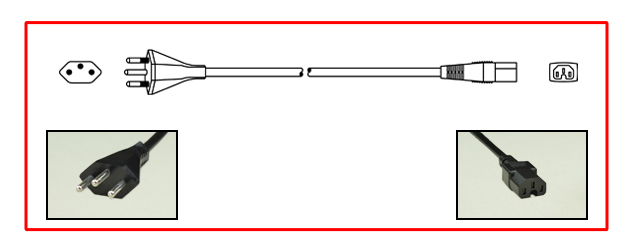

Brazil Type N power cords are black as standard color. Brazil power cords in white or gray are special order. Custom length and shielded Brazil AC power cables available. Terminated, custom stripping, hanked Brazil cords available. IEC 60320 C-15 120C connector available on some Brazil AC power cords. |
|
Brazil Power Cords and Power Supply Cord Sets
BR2-10P, ABNT NBR 14136, 10 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type N Plug
BR3-20P, ABNT NBR 14136, 16 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type N Plug
NBR 6147 (Non-Polarized) Brazil Plug, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding
