Italy Power Cords - AC Cables
Italy Power Cords and Power Supply Cord Sets
IT1-10P, CEI 23-50 (S11), 10 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type L Plug
IT2-16P, CEI 23-50 (S17), 16 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type L Plug
CEE 7/16 (Non-Polarized) Europlug, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding
Specification Data: Italy Power Cords, AC Cables, Type L Plug
 |
|
|
| Plug Standard | CEI 23-50 (S11 - 10 Amp Cords), CEI 23-50 (S17 - 16 Amp Cords), Type L Plug CEE 7/16 (Non-Polarized) Plug |  |
|---|---|---|
| Connector Standards | IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated | |
| Cordage Standards | H05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR) | |
| Conductor Size / Rating | 0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere | |
| Material | PVC, Jacket Color Black, Temperature 70C | |
| Conductor Color Code | Brown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire) | |
| Jacket O.D. (Approx.) | 6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm | |
| Substances Compliance | REACH, RoHS Compliant | |

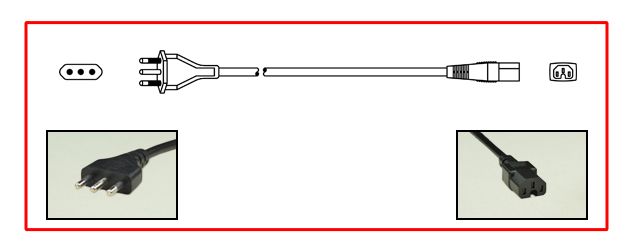

| Power Cord Notes: | Italy Type L power cords are black as standard color. Italy power cords in white or gray are special order. Custom length and shielded Italy AC power cables available. Terminated, custom stripping, hanked Italy cords available. IEC 60320 C-15 120C connector available on some Italy AC power cords. | |
