| Plug Standard | SI 32 Type H Plug, CEE 7/16 (Non-Polarized) Plug |  |
|---|

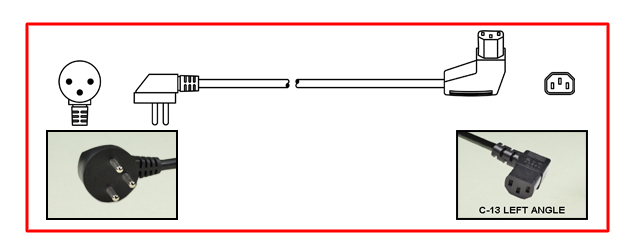

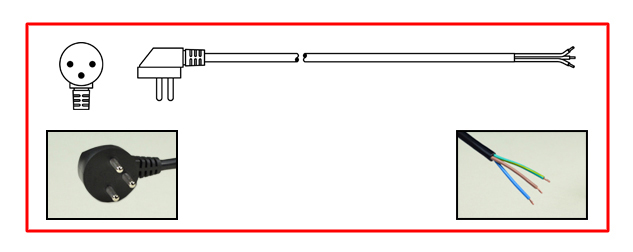

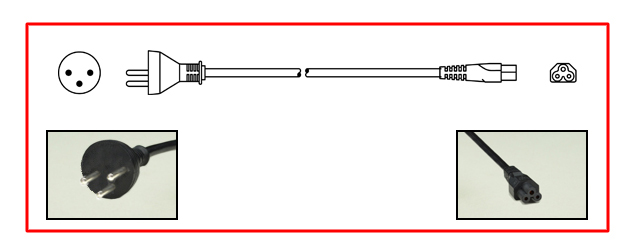

| Connector Standards | IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated |
|---|
| Cordage Standards | H05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR) |
|---|
| Conductor Size / Rating | 0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere |
|---|
| Material | PVC, Jacket Color Black, Temperature 70C |
|---|
| Conductor Color Code | Brown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire) |
|---|
| Jacket O.D. (Approx.) | 6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm |
|---|
| Substances Compliance | REACH, RoHS Compliant |
|---|
|
| Power Cord Notes: |

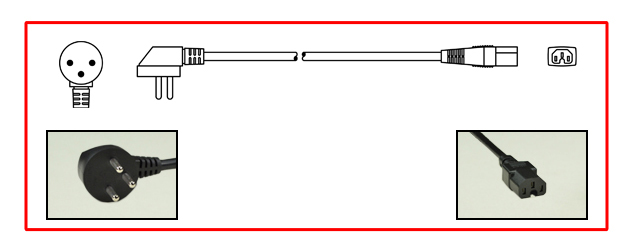

Israel Type H power cords are black as standard color. Israel power cords in white or gray are special order. Custom length and shielded Israel AC power cables available. Terminated, custom stripping, hanked Israel cords available. IEC 60320 C-15 120C connector available on some Israel AC power cords. |
|
Israel Power Cords and Power Supply Cord Sets
IS1-16P, SI 32, 16 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type H Plug
CEE 7/16 (Non-Polarized) Europlug, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding
