Cambodia Power Cords - AC Cables
Cambodia Power Cords and Power Supply Cord Sets

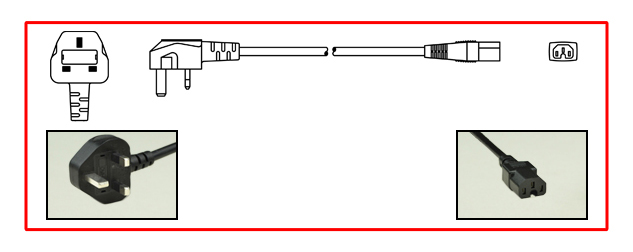

UK1-13P, BS 1363, BS 1363A, 13 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type G Plug
Specification Data: Cambodia Power Cords, AC Cables, Type G Plug
 |
|
|
| Plug Standard | BS 1363, BS 1363A, Fused Type G Plug. BS 1362, 3 Amp, 5 Amp, 10 Amp, 13 Amp Fuse Options. |  |
|---|---|---|
| Connector Standards | IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated | |
| Cordage Standards | H05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR) | |
| Conductor Size / Rating | 0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere | |
| Material | PVC, Jacket Color Black, Temperature 70C | |
| Conductor Color Code | Brown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire) | |
| Jacket O.D. (Approx.) | 6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm | |
| Substances Compliance | REACH, RoHS Compliant | |
| Power Cord Notes: | Cambodia Type G power cords are black as standard color. Cambodia power cords in white or gray are special order. Custom length and shielded Cambodia AC power cables available. Terminated, custom stripping, hanked Cambodia cords available. IEC 60320 C-15 120C connector available on some Cambodia AC power cords. | |
