Uruguay Power Cords - AC Cables
Uruguay Power Cords and Power Supply Cord Sets
AR1-10P, IRAM 2073, 10 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type I Plug
AR2-20P, IRAM 2073, 16A, 20 Amp 250 Volt AC, 2 Pole 3 Wire Grounding, Type I Plug
AR1-10P Non-Grounded, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding
Specification Data: Uruguay Power Cords, AC Cables, Type I Plug
 |
|
|
| Plug Standard | AR1-10P, IRAM 2073, Type I Plug AR2-20P, IRAM 2073, Type I Plug |  |
|---|---|---|

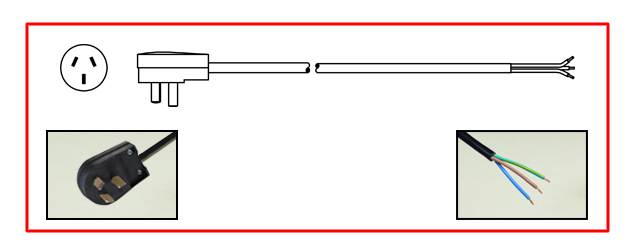

| Connector Standards | IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-7, C-15, Unterminated | |
| Cordage Standards | H05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR) | |
| Conductor Size / Rating | 0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere | |
| Material | PVC, Jacket Color Black, Temperature 70C | |
| Conductor Color Code | Brown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire) | |
| Jacket O.D. (Approx.) | 6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm | |
| Substances Compliance | REACH, RoHS Compliant | |

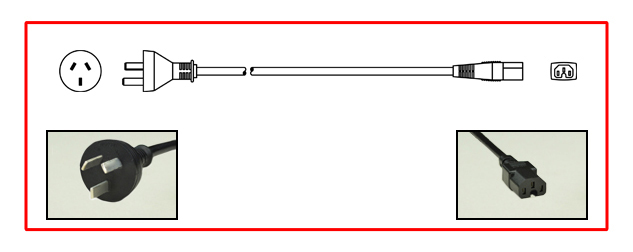

| Power Cord Notes: | Uruguay Type I power cords are black as standard color. Uruguay power cords in white or gray are special order. Custom length and shielded Uruguay AC power cables available. Terminated, custom stripping, hanked Uruguay cords available. IEC 60320 C-15 120C connector available on some Uruguay AC power cords. | |
